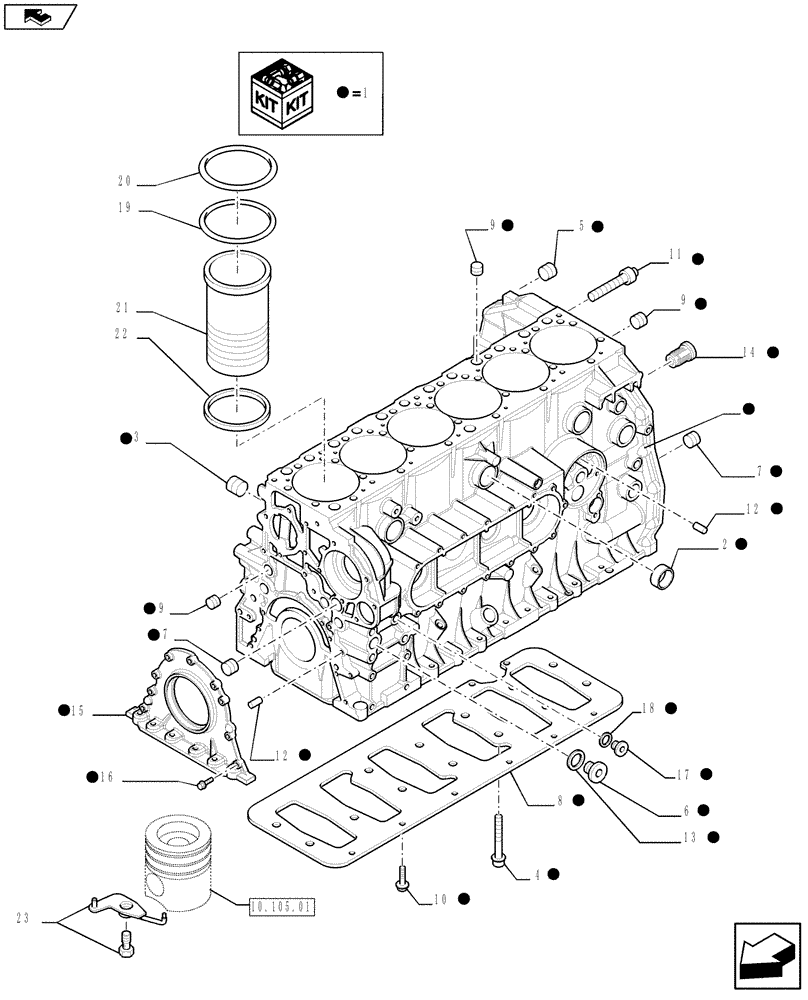

Запчасти Case IH 635 (10.001.02) - CYLINDER HEAD & RELATED PARTS (10) - ENGINE

1

504219039

CYLINDER BLOCK

ASSY

1шт.

2

16991370

PLUG

D = 45 mm

1шт.

3

98472271

PLUG

3шт.

4

504125417

SCREW

M12 x 2

14шт.

5

98472270

PLUG

1шт.

6

16992515

PLUG

M18 x 1.5

1шт.

7

16990870

PLUG

D = 22 mm

3шт.

8

504127723

PLATE

1шт.

9

16990670

PLUG,Lock, 22mm Dia

D = 20 mm

10шт.

10

16587024

FLANGE BOLT,Hex, M10 x 20mm, Cl 8.8, Full Thd

M10 x 20

12шт.

11

500356932

PLUG

D = 12 mm

3шт.

12

500314967

DOWEL

D = 10 mm

3шт.

13

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

D = 18 x 26 mm

1шт.

14

504142601

VALVE

1шт.

15

504125098

COVER ASSY

1шт.

16

16586425

BOLT,M8 x 25mm

M8 x 25

9шт.

17

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.

18

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.

19

99459175

GASKET

120.24 x 3.53

6шт.

20

99459176

GASKET

120.24 x 3.53

12шт.

21

504305869

LINER, ENGINE CYLIND

6шт.

22

504128648

SHIM

THK 0.08 mm

6шт.

22

504128649

SHIM

THK 0.1 mm

6шт.

22

504128650

SHIM

THK 0.12 mm

6шт.

22

504128651

SHIM

THK 0.14 mm

6шт.

23

504127000

LUBE OIL NOZZLE,FOR PISTON FEDERAL MOGUL

LUBE OIL JET NOZZLE

6шт.

23

504236099

LUBE OIL NOZZLE,FOR PISTON MAHLE

6шт.
