(55.404.06) - BACKUP LIGHTS AND HARNESS

Запчасти Case IH 635 (55.404.06) - BACKUP LIGHTS AND HARNESS (55) - ELECTRICAL SYSTEMS

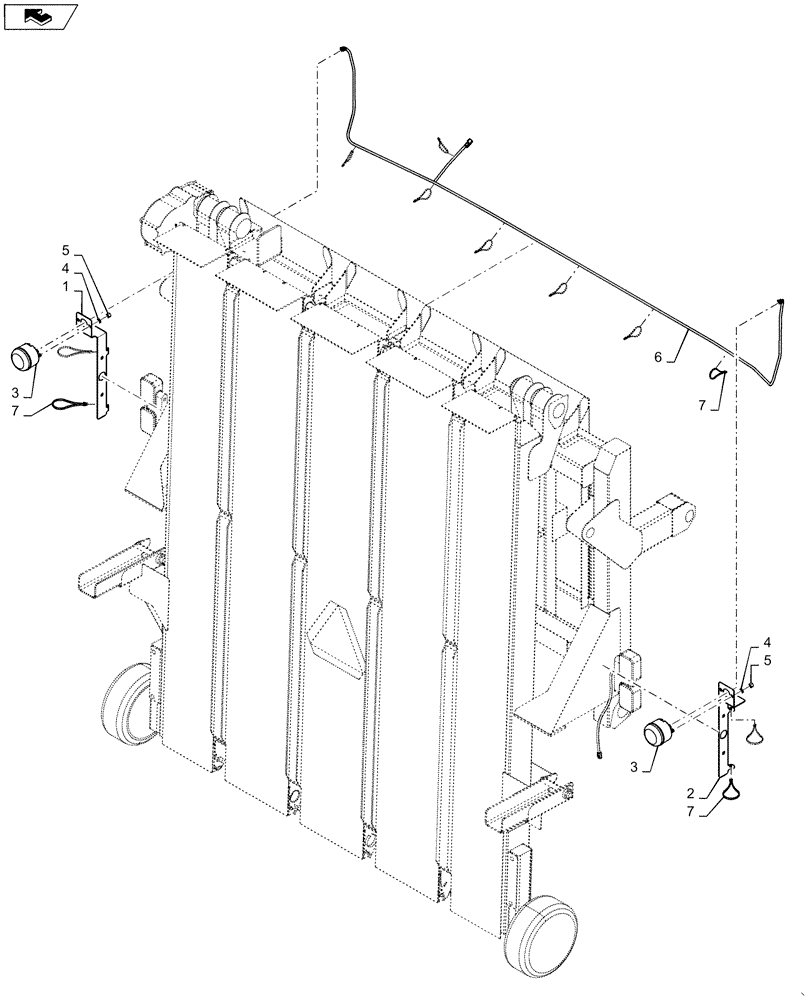

Схема запчастей Case IH 635 - (55.404.06) - BACKUP LIGHTS AND HARNESS (55) - ELECTRICAL SYSTEMS
3
7
5
1
4
7
5
home
7
4
3
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84419293

MOUNT

LH Backup Light, Red

1шт.

2

84419295

MOUNT

RH Backup Light, Red

1шт.

3

84185527

LIGHT,12V, 21W, Clear

Backup

2шт.

4

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

5

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

4шт.

6

84420129

Harness, Rear Reversing Lamps

1шт.

7

533959R1

CABLE TIE,.135" x 11"

13шт.
