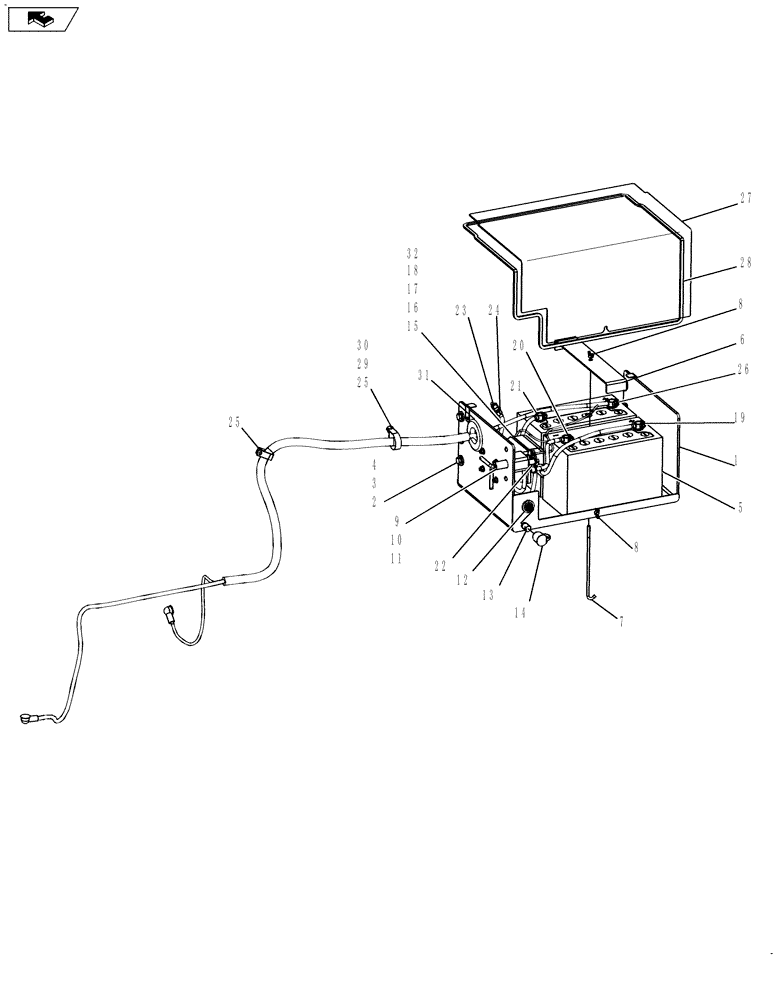

Запчасти Case IH 635 (55.301.02) - BATTERY AND BATTERY CABLES (55) - ELECTRICAL SYSTEMS

1

84173490

BATTERY BOX

Mount

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

3

87393626

WASHER,0.53" ID x 1.25" OD x 0.19" Thk

12шт.

4

86521610

FLANGE NUT,Flg, 1/2"-13

6шт.

5

A187592

WET BATTERY

2шт.

6

84173494

STRAP

Battery Hold Down

1шт.

7

87691876

ROD

Battery Hold Down

1шт.

8

129-419

WING NUT,5/16"-18

2шт.

9

84004375

BATTERY CUT-OUT

Battery Disconnect Switch

1шт.

10

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

2шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

12

190158A1

BLOCK

Junction Box Assembly

1шт.

13

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

Jump Start

1шт.

14

359452A1

BOOT

Jump Start Plug

1шт.

15

389120

RELAY

1шт.

16

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

18

9706690

NUT,M8 x 1.25, Cl 8

4шт.

19

84265294

POS BATTERY CABLE

To Relay

1шт.

20

84265293

NEG BATTERY CABLE

1шт.

21

84265295

NEG BATTERY CABLE

To Relay

1шт.

22

84265296

POS BATTERY CABLE

Jump To Relay

1шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

24

84265289

GROUND CABLE

Disconnect To Ground

1шт.

25

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

26

84265290

POS BATTERY CABLE

Alternator And Starter

1шт.

27

84177609

OUTER SHIELD

Battery Box Cover

1шт.

28

84193199

RUBBER SEAL

Battery Cover Box Seal

1шт.

29

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

30

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

31

87698772

GROMMET

Rubber Grommet

1шт.

32

420580

FUSED LINK

2шт.
