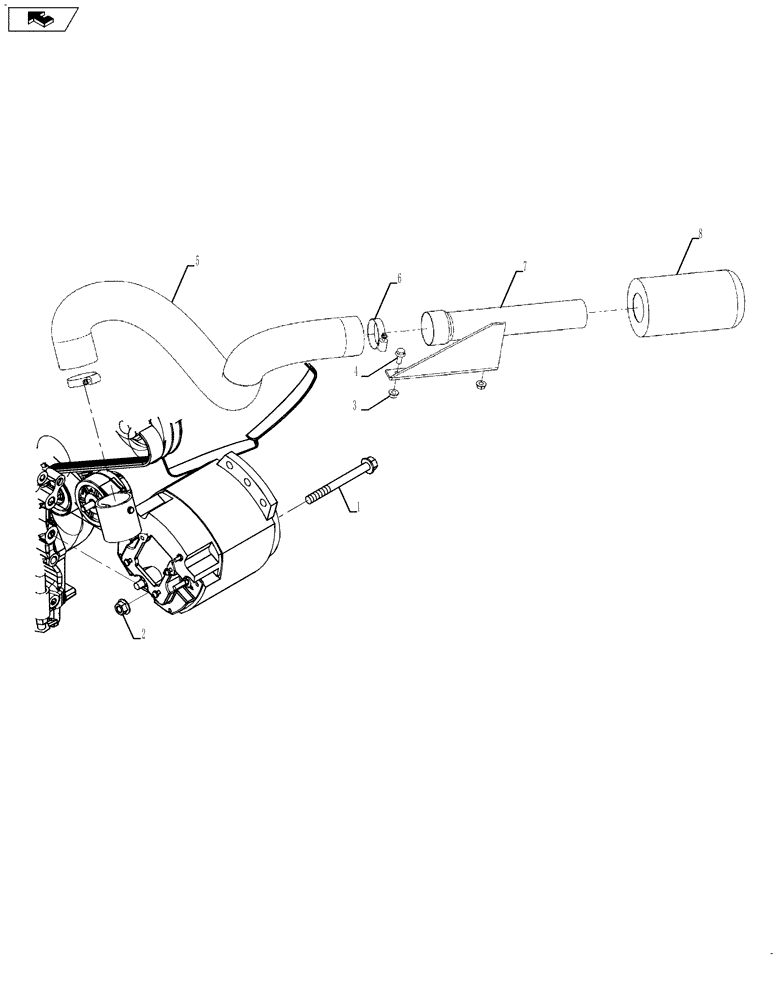

Запчасти Case IH 635 (55.301.01) - ALTERNATOR MOUNTING AND FILTER (55) - ELECTRICAL SYSTEMS

1

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

1шт.

2

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

5

434708A1

HOSE,63.50 mm ID x 965.00 mm

Alternator Air Supply

1шт.

6

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

2шт.

7

353411R92

FILTER ASSY

Alternator

1шт.

8

1338707C1

SUPPORT

Alternator Tube

1шт.

9

87645142

ALTERNATOR,12V, 185A

Alternator

1шт.

87645142R

REMAN-ALTERNATOR

635 (8/10-)

1шт.

87645142C

CORE-ALTERNATOR

Return Number

1шт.
