(55.100.21) - HARNESS, COTTON AFS YIELD MONITOR

Запчасти Case IH 635 (55.100.21) - HARNESS, COTTON AFS YIELD MONITOR (55) - ELECTRICAL SYSTEMS

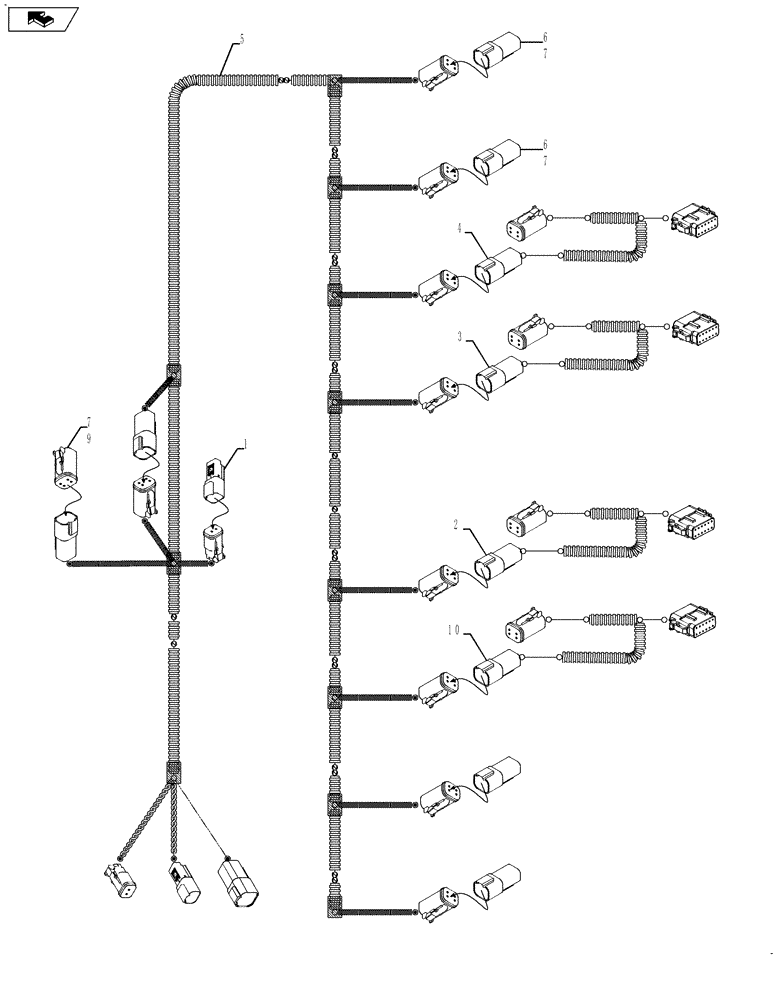

Схема запчастей Case IH 635 - (55.100.21) - HARNESS, COTTON AFS YIELD MONITOR (55) - ELECTRICAL SYSTEMS
6
7
9
3
1
5
10
2
7
7
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84202147

WIRE HARNESS

1шт.

2

84256831

ELECTRIC CABLE

Sensor #2

1шт.

3

84256832

ELECTRIC CABLE

Sensor #3

1шт.

4

84256833

ELECTRIC CABLE

Sensor #4

1шт.

5

84202146

WIRE HARNESS

Outside Main

1шт.

6

87694154

CONTACT HOUSING,Male, 4 Pole

Recept 4P

4шт.

7

84068583

PLUG,12 - 16 Ga, White

Sealing

22шт.

8

87695584

CONTACT HOUSING,Male, 2 Cavities

Recept 2P

1шт.

9

87694153

CONTACT HOUSING,Female, 4 Cavities

Plug 4S

1шт.

10

84256830

ELECTRIC CABLE

Sensor #1

1шт.
