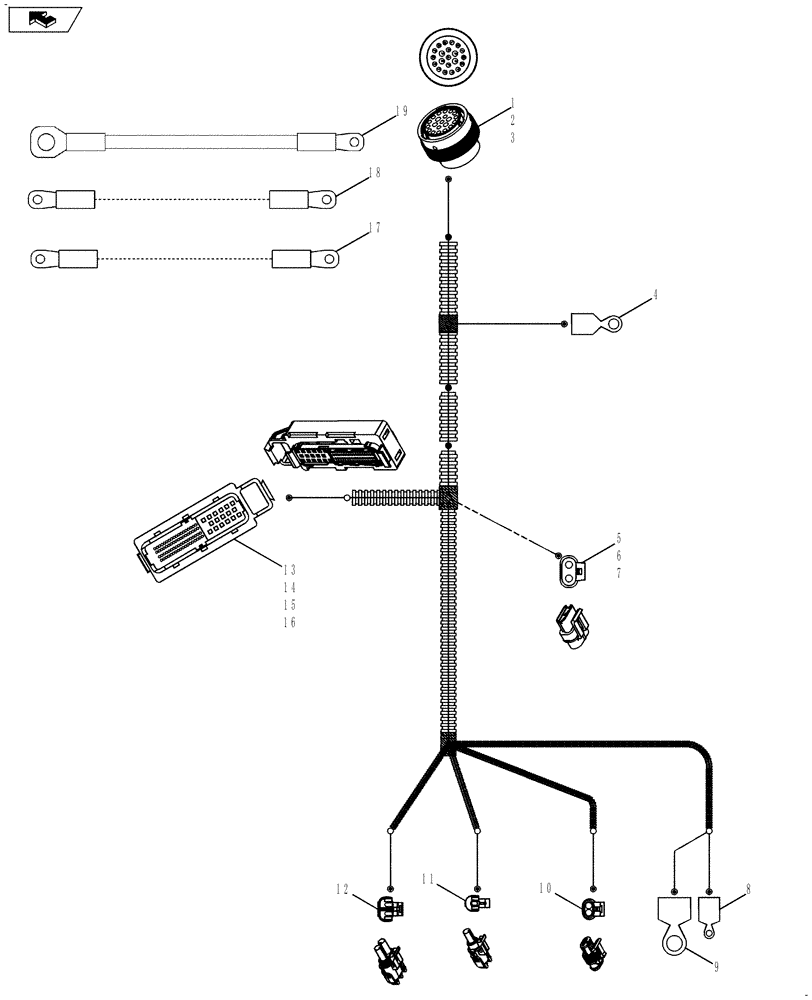

Запчасти Case IH 635 (55.100.18) - GRID HEATER HARNESS (55) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

Recepticle, 21 Way

1шт.

2

NSS

NOT SOLD SEPARAT

Boot

1шт.

3

87695652

PLUG,12 - 16 Ga, White

1шт.

4

NSS

NOT SOLD SEPARAT

TERMINAL, C007 Ground

1шт.

5

87688712

WIRE CONNECTOR,Female

2-Way C008

1шт.

6

87688863

CAP

1шт.

7

NSS

NOT SOLD SEPARAT

FUSE, Chamber Lights Fuse

1шт.

8

NSS

NOT SOLD SEPARAT

TERMINAL, C006 Alternator Excite

1шт.

9

NSS

NOT SOLD SEPARAT

TERMINAL, C009 Chamber Lights Fuse Feed

1шт.

10

84152155

ELEC CONNECTOR

Connector, 2-Way Grid Heat Relay Coil

1шт.

11

87693744

WIRE CONNECTOR

1-Way C004 A/C Clutch

1шт.

12

87692855

CONTACT HOUSING,Male, 2 Cavities

2-Way C005 A/C High Pressure Switch

1шт.

13

84160698

ELEC CONNECTOR

Recepticle, 89-Way Engine Control

1шт.

14

NSS

NOT SOLD SEPARAT

Backshell

1шт.

15

84183733

ELEC CONNECTOR

Cover Preassembled

1шт.

16

87636264

ELEC CONNECTOR

Dummy Plug

1шт.

17

86611285

ELECTRICAL WIRE

WIRE Grid Heater Relay to Grid Heater

1шт.

18

86611287

CABLE,490mm L

WIRE Grid Heater to Alternator Ground

1шт.

19

84182141

WIRE HARNESS

Alternator B+ to Grid Heater Relay

1шт.
