(55.100.17) - HARNESS, SIDE ROW GUIDANCE SYSTEM

Запчасти Case IH 635 (55.100.17) - HARNESS, SIDE ROW GUIDANCE SYSTEM (55) - ELECTRICAL SYSTEMS

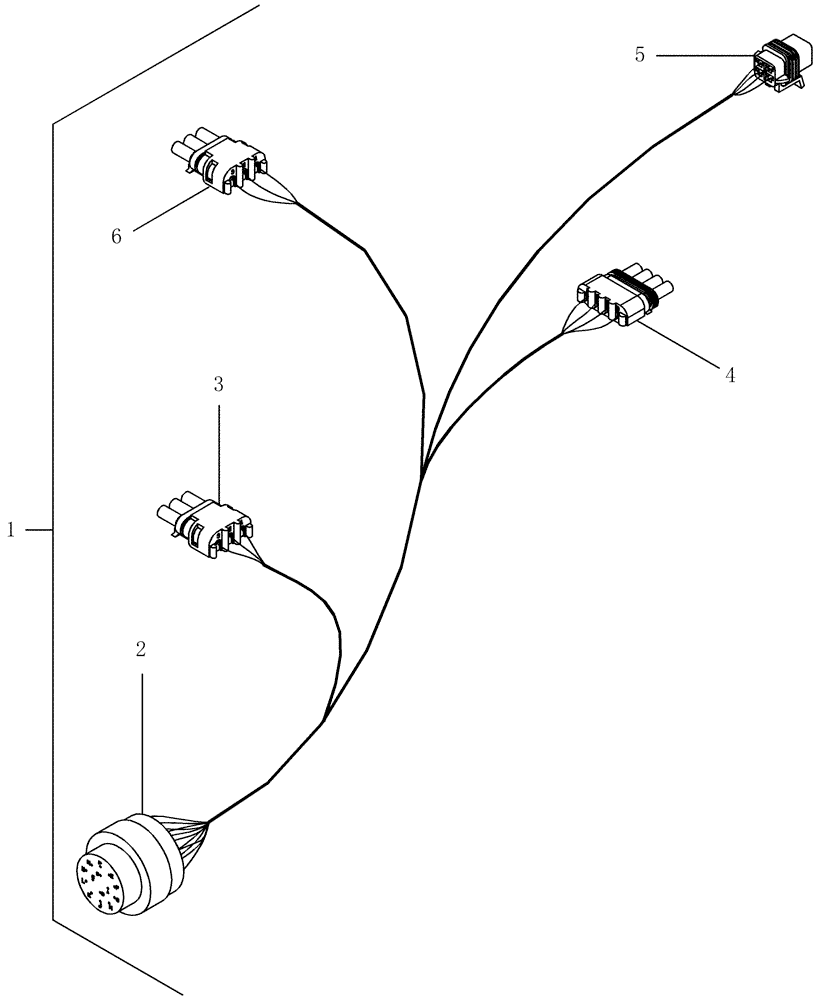

Схема запчастей Case IH 635 - (55.100.17) - HARNESS, SIDE ROW GUIDANCE SYSTEM (55) - ELECTRICAL SYSTEMS
1
2
4
5
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

397193A2

HARNESS

Side, Row Guidance System, Inc. 2 - 6

1шт.

2

225237C1

ELEC CONNECTOR,Female, 14 Pin

14 Cavity, To Cab Bulkhead

1шт.

3

245484C1

ELEC CONNECTOR,3 Pin

To Pendulum Sensor

1шт.

4

245486C1

ELEC CONNECTOR,4 Pin

To Valve Block

1шт.

5

245715C1

ELEC CONNECTOR,4 Pin

To Solenoid Valve

1шт.

6

245484C1

ELEC CONNECTOR,3 Pin

To Steering Sensor

1шт.
