(55.100.15) - HARNESS, TRANSMISSION

Запчасти Case IH 635 (55.100.15) - HARNESS, TRANSMISSION (55) - ELECTRICAL SYSTEMS

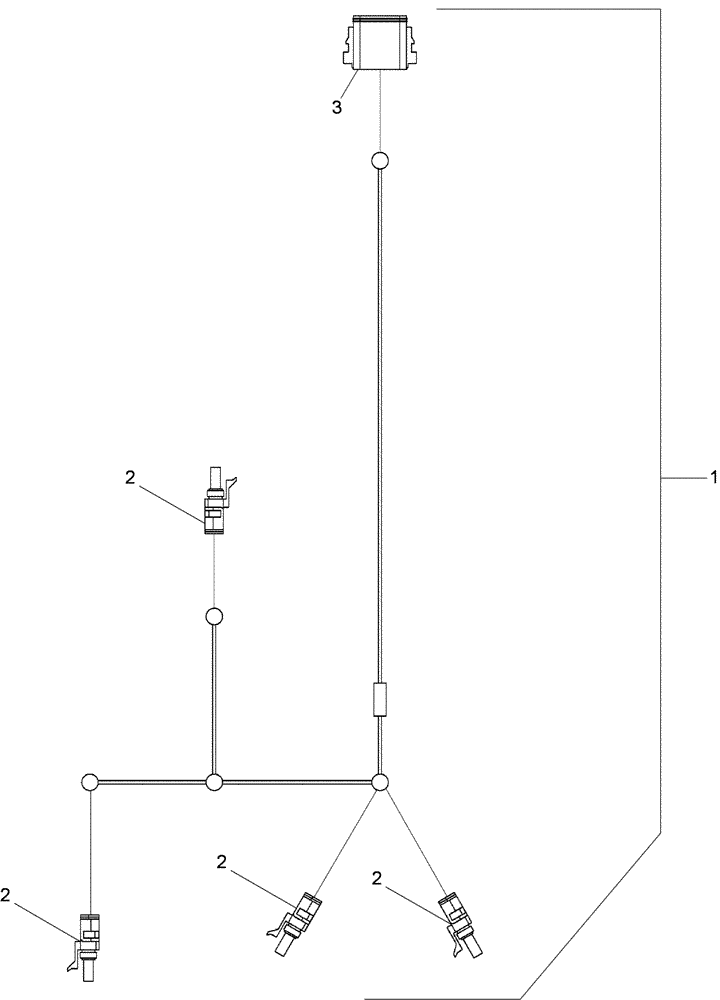

Схема запчастей Case IH 635 - (55.100.15) - HARNESS, TRANSMISSION (55) - ELECTRICAL SYSTEMS
1
2
3
2
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

338017A1

HARNESS

Transmission, Inc. 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR, 2-Pin, 102, MPH Sensor, 103, Drums Lower Solenoid, 104, Transmission Neutral Switch, 105, Thumb-N-Inch Solenoid

4шт.

3

NSS

NOT SOLD SEPARAT

CONNECTOR, 12-Pin, 99, To Left Side Harness

1шт.

4

245482C1

ELEC CONNECTOR,2 Pin

Ground Speed Sensor, Not Shown

1шт.
