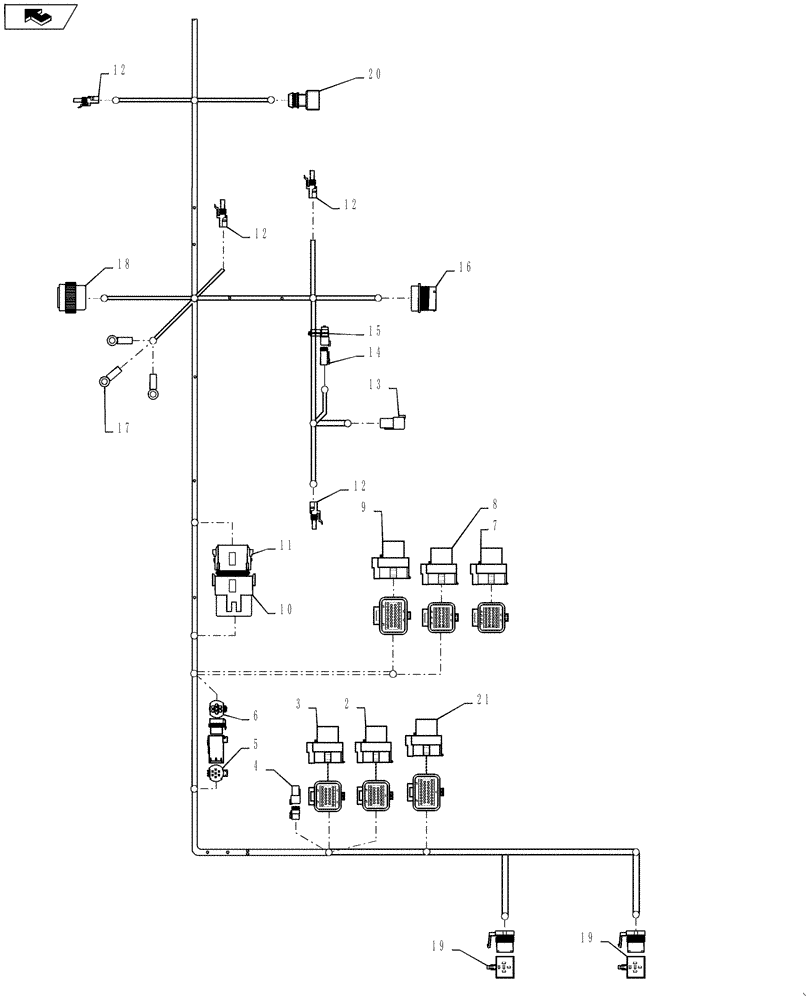

Запчасти Case IH 635 (55.100.05 [02]) - RIGHT HAND SIDE HARNESS (55) - ELECTRICAL SYSTEMS

1

84260403

WIRE HARNESS

Inc. 2-21

1шт.

1

84542516

WIRE HARNESS

Not Illustrated, Start Year: 04-JAN-12

1шт.

2

87410948

CONTACT HOUSING,Female, 26 Pole

26 Pin

1шт.

3

87410949

CONTACT HOUSING,Female, 26 Pole

26 Pin

1шт.

4

381414A1

TERMINAL CONNECTOR

2 Pin

1шт.

5

182085A1

WIRE CONNECTOR

6 Pin

1шт.

6

182087A1

CONNECTOR, ELEC

CONNECTOR 6 Pin

1шт.

7

87419489

MULTIPOLE CONNECTOR,Female, 26 Pole

26 Pin

1шт.

8

87419488

MULTIPOLE CONNECTOR,Female, 26 Pole

26 Pin

1шт.

9

87410947

MULTIPOLE CONNECTOR,Female, 34 Pole

34 Pin

1шт.

10

225400C1

CONNECTOR, ELEC

CONNECTOR 12 Pin

1шт.

11

225402C1

CONNECTOR, ELEC

CONNECTOR 12 Pin

1шт.

12

245482C1

ELEC CONNECTOR,2 Pin

2 Pin

4шт.

13

280453A1

ELEC CONNECTOR,Male, 6 Pin

6 Pin

1шт.

14

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Pin

1шт.

15

225315C1

ELEC CONNECTOR,Male, 2 Pin

2 Pin

1шт.

16

319151A1

CONNECTOR, ELEC

CONNECTOR 23 Pin

1шт.

17

NSS

NOT SOLD SEPARAT

TERMINAL, 112A, 121A, 114A, 234A, 111A,172A, 173A Rear Chassis Ground

3шт.

18

225237C1

ELEC CONNECTOR,Female, 14 Pin

14 Pin

1шт.

19

NSS

NOT SOLD SEPARAT

5 Pin Plug

2шт.

20

84806091

WIRE CONNECTOR,Female, 3 Pin

3 Pin Water In Fuel Sensor

1шт.

21

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

34 Pin

1шт.
