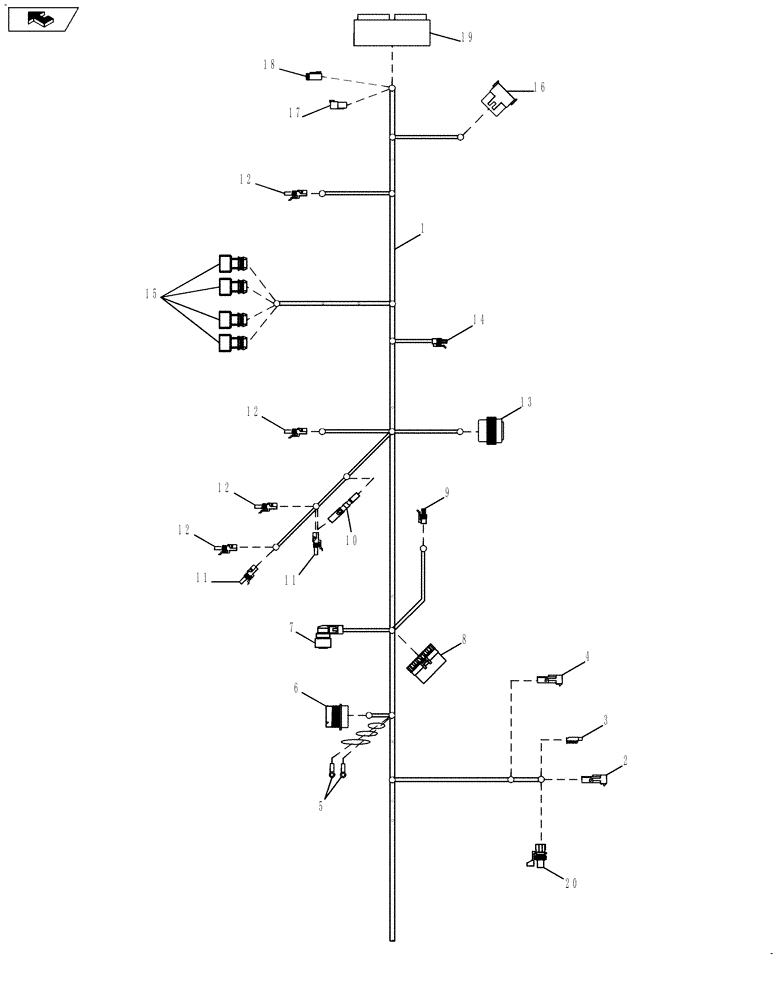

Запчасти Case IH 635 (55.100.05 [01]) - RIGHT SIDE HARNESS COMPONENT LOCATION (55) - ELECTRICAL SYSTEMS

1

84383842

WIRE HARNESS

Inc. 2-20 , Fig 55.100.05 (02)

1шт.

2

245485C1

ELEC CONNECTOR,Male, 3 Pin

3 Pin

1шт.

3

NSS

NOT SOLD SEPARAT

3 Pin Connector

1шт.

4

245487C1

ELEC CONNECTOR,Male, 4 Pin

4 Pin

1шт.

5

NSS

NOT SOLD SEPARAT

TERMINAL, 176B, 177A, 127A, 181B, Chassis Ground at Engine Mount

2шт.

6

NSS

NOT SOLD SEPARAT

21 Pin Connector

1шт.

7

NSS

NOT SOLD SEPARAT

CONNECTOR, 7 Pin

1шт.

8

182083A1

CONNECTOR, ELEC,Female, 6 Cavities

CONNECTOR 6 Pin

1шт.

9

194788A1

CONNECTOR, 2-POLE

1шт.

10

113699A1

RECTIFIER

1шт.

11

245484C1

ELEC CONNECTOR,3 Pin

3 Pin

2шт.

12

245482C1

ELEC CONNECTOR,2 Pin

2 Pin

4шт.

13

NSS

NOT SOLD SEPARAT

23 Pin

1шт.

14

182069A1

CONNECTOR, ELEC

CONNECTOR 2 Pin

1шт.

15

84607243

ELEC CONNECTOR,Female, 2 Cavities

2 Pin

4шт.

16

225388C1

ELEC CONNECTOR,Male, 12 Pin

12 Pin

1шт.

17

225315C1

ELEC CONNECTOR,Male, 2 Pin

2 Pin

1шт.

18

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Pin

1шт.

19

225346C1

CONNECTOR, ELEC

CONNECTOR 70 Pin

1шт.

20

182077A1

CONNECTOR, ELEC

CONNECTOR 4 Pin

1шт.
