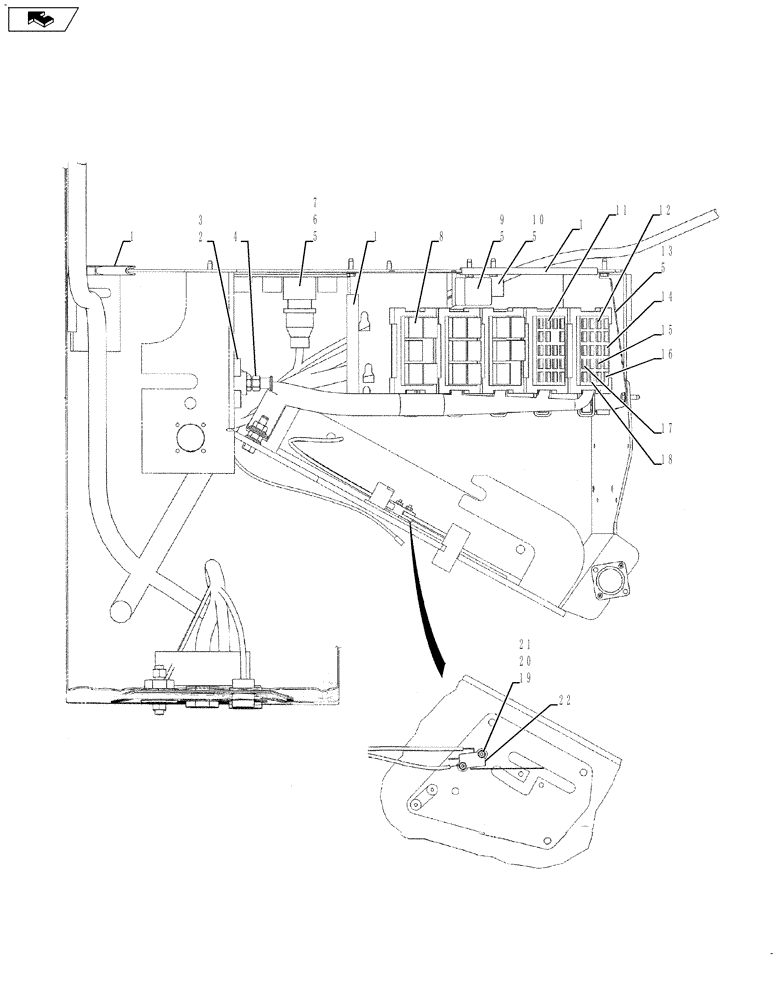

Запчасти Case IH 635 (55.100.03 [04]) - MAIN CAB HARNESS, RIGHT HAND PEDESTAL (55) - ELECTRICAL SYSTEMS

1

1327979C1

MOLDING

Grommet

3шт.

2

262-15516

SELF-TAP SCREW,Hex Pan Hd, #10 x 1"

2шт.

3

303717A1

JUNCTION BLOCK

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

7шт.

6

495-31022

WASHER,#10

2шт.

7

1983419C3

CONTROL UNIT

1шт.

8

86509590

RELAY

20 Amp Continous Duty

15шт.

9

309001A1

FLASHER UNIT,12V

NAO Hazard

1шт.

10

87522476

RELAY

12 Volt 70 Amp

1шт.

11

121412A1

FUSE,10A, Mini, Red

12шт.

12

121850A1

FUSE,3A, Mini, Violet

3шт.

13

123116A1

PANEL

Fuse & Relay

1шт.

14

121410A1

FUSE,5A, Mini, Tan

5шт.

15

121416A1

FUSE,30A, Mini, Green

3шт.

16

121414A1

FUSE,20A, Mini, Yellow

5шт.

17

121415A1

FUSE,25A, Mini, Clear

3шт.

18

121413A1

FUSE,15A, Mini, Blue

7шт.

19

280385

NUT,#4-40

2шт.

20

218322

WASHER,0.12" ID x 0.31" OD x 0.03" Thk

2шт.

21

463-10412

SCREW,Hex Hd, #4-40 x 3/4"

2шт.

22

60-6515T1

SWITCH

Micro

1шт.
