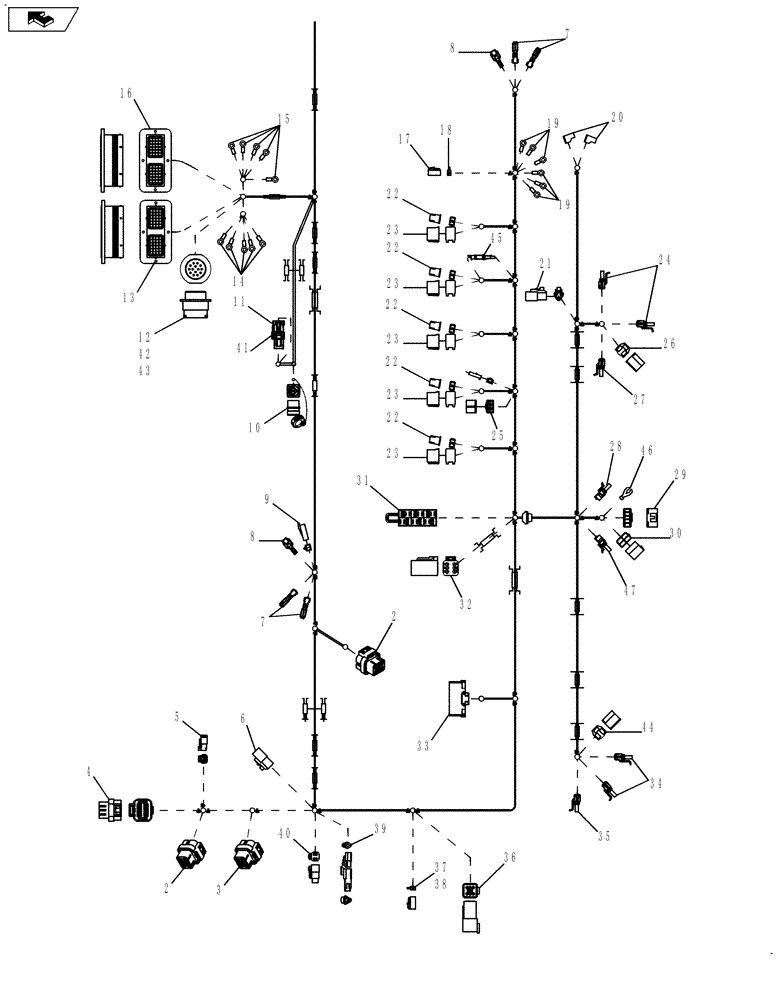

Запчасти Case IH 635 (55.100.03 [02]) - MAIN CAB HARNESS (55) - ELECTRICAL SYSTEMS

1

84260402

WIRE HARNESS

Main Cab 2009 And After

1шт.

2

87410948

CONTACT HOUSING,Female, 26 Pole

26 Pin Plug

2шт.

3

87410949

CONTACT HOUSING,Female, 26 Pole

23 Pin Plug

1шт.

4

87419488

MULTIPOLE CONNECTOR,Female, 26 Pole

26 Pin Plug

1шт.

5

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Pin Plug

1шт.

6

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4 Pin Plug

4шт.

7

NSS

NOT SOLD SEPARAT

CONNECTOR, 1 Pin Plug 42B, 14C, 14, 42

4шт.

8

NSS

NOT SOLD SEPARAT

CONNECTOR, 1 Pin Plug 130B, 48P

2шт.

9

NSS

NOT SOLD SEPARAT

CONNECTOR, 2 Pin Plug Projection Light

2шт.

10

82019146

MULTIPOLE CONNECTOR,Male , 9 Pole

Dianostics Connection

1шт.

11

NSS

NOT SOLD SEPARAT

3 Pin Plug

1шт.

12

225233C1

CONNECTOR, ELEC

CONNECTOR 14 Pin Plug

1шт.

13

NSS

NOT SOLD SEPARAT

CONNECTOR, 70 Pin

1шт.

14

NSS

NOT SOLD SEPARAT

TERMINALS, 12-13, 22-23-181, 1, 78-104, 3A

5шт.

15

NSS

NOT SOLD SEPARAT

TERMINALS, 301A, 237M, 213C, 214B, 216H-239

5шт.

16

NSS

NOT SOLD SEPARAT

CONNECTOR, 70 Pin

1шт.

17

195552A1

ELEC CONNECTOR,Female, 2 Pin

2 Pin Connector

1шт.

18

196157A1

SOCKET

Terminal

1шт.

19

NSS

NOT SOLD SEPARAT

TERMINALS, 51, 50A, 49A, 48N, 54A, 130A Upper Chassis Ground

6шт.

20

NSS

NOT SOLD SEPARAT

CONNECTOR, 1 Pin Plug Door Jamb Switch

2шт.

21

225295C1

ELEC CONNECTOR,Female, 3 Pin

3 Pin Plug Chutes Control Switch

1шт.

22

NSS

NOT SOLD SEPARAT

CONNECTOR, 2 Pin Plug

5шт.

23

NSS

NOT SOLD SEPARAT

CONNECTOR, 8 Pin Plug

5шт.

24

NSS

NOT SOLD SEPARAT

2 Pin Plug Left Hand Worklights

2шт.

25

NSS

NOT SOLD SEPARAT

CONNECTOR, 6 Pin Plug

1шт.

26

261702C1

CONNECTOR, ELEC

CONNECTOR Left Hand Hi/Low Lights

1шт.

27

NSS

NOT SOLD SEPARAT

2 Pin Plug

1шт.

28

NSS

NOT SOLD SEPARAT

CONNECTOR, 3 Pin Plug Left Hand Light

1шт.

29

NSS

NOT SOLD SEPARAT

CONNECTOR, 5 Pin Plug

1шт.

30

NSS

NOT SOLD SEPARAT

CONNECTOR, 4 Pin Plug Deluxe Wiper Motor

1шт.

31

NSS

NOT SOLD SEPARAT

CONNECTOR, 30 Pin Plug

1шт.

32

225351C1

ELEC CONNECTOR,Female, 6 Pin

ASAE Lighting Interface

1шт.

33

198719A1

CONNECTOR, ELEC

CONNECTOR 32 Pin Plug

1шт.

34

NSS

NOT SOLD SEPARAT

2 Pin Plug Right Hand Worklights

2шт.

35

NSS

NOT SOLD SEPARAT

2 Pin Plug Right Hand Inner HID

1шт.

36

225350C1

ELEC CONNECTOR,Male, 6 Pin

6 Pin Plug

1шт.

37

196157A1

SOCKET

Terminal

1шт.

38

195552A1

ELEC CONNECTOR,Female, 2 Pin

2 Pin

1шт.

39

NSS

NOT SOLD SEPARAT

CONNECTOR, 3 Pin Plug

1шт.

40

277904A1

ELEC CONNECTOR,Female, 4 Pin

4 Pin Connector

1шт.

41

NSS

NOT SOLD SEPARAT

Connector

1шт.

42

490691C1

LOCK WASHER,#18 Shell

1шт.

43

490692C1

LOCK NUT,#18 Shell

1шт.

44

261702C1

CONNECTOR, ELEC

CONNECTOR Right Hand Hi/Low Lights

1шт.

45

113699A1

RECTIFIER

1шт.

46

NSS

NOT SOLD SEPARAT

TERMINAL, 51B, Wiper Ground

1шт.

47

NSS

NOT SOLD SEPARAT

CONNECTOR, 3Pin Plug Right Hand Light

1шт.
