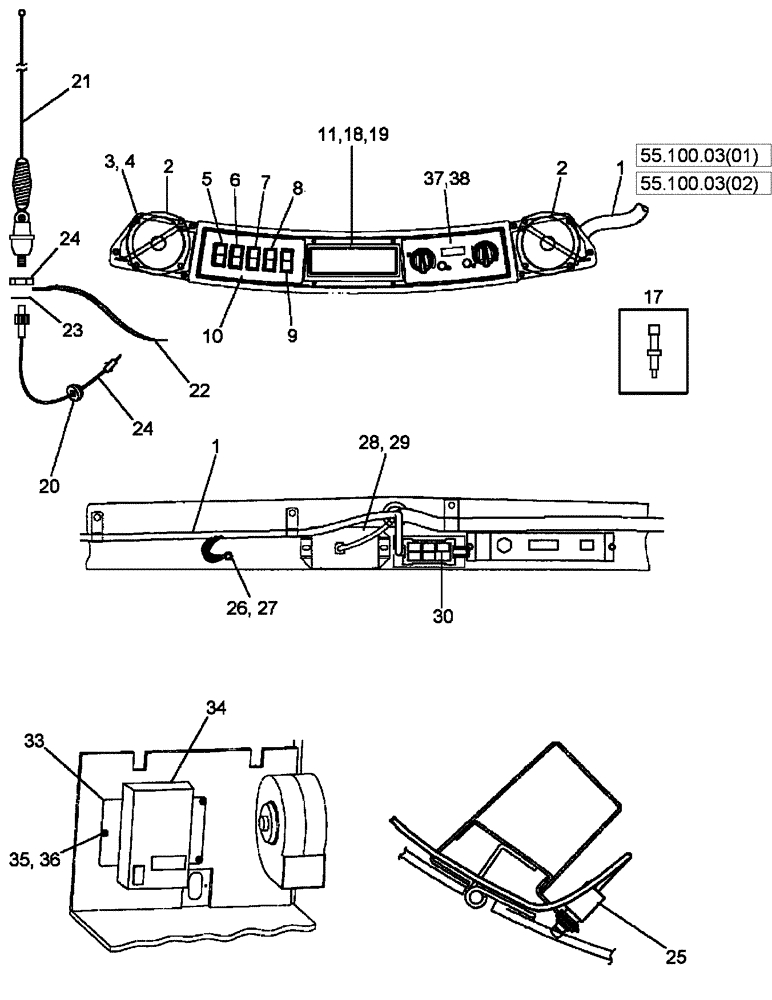

Запчасти Case IH 635 (55.100.03[03]) - HARNESS, MAIN CAB, OVERHEAD CONTROL PANEL (55) - ELECTRICAL SYSTEMS

1

87589310

WIRE HARNESS

Main Cab, Model Year 2007 And Prior, Serial Range: -Y8T013801

1шт.

1

87731929

WIRE HARNESS

Main Cab, Model Year 2008, Start Serial: Y8T013801

1шт.

2

375389A1

SPEAKER

5-1/2

2шт.

3

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

8шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

5

141430A1

SWITCH

Emergency Unload

1шт.

6

279263A1

FLASHER SWITCH

Hazard

1шт.

7

124095A1

LIGHT SWITCH

1шт.

8

144160A1

SWITCH

Drum Lamp

1шт.

9

141488A1

WINDSHIELD WIPER SWI

1шт.

10

87404881

DECAL

Overhead Control Panel (Not Shown)

1шт.

11

87105189

COVER

With Radio

1шт.

12

87281122

SLEEVE

1шт.

14

87337658

AIR CONTROL

1шт.

Model Year 2008 And Prior

1шт.

14

87740399

CONTROL PANEL

Heating and Air Conditioning

1шт.

Model Year 2008 and After

1шт.

17

113699A1

RECTIFIER

2-5/8

1шт.

18

REF

INSTRUCTION

Radio, AM-FM Stereo, Order From Ship Direct

1шт.

19

REF

INSTRUCTION

Radio, AM-FM Stereo, With Cassette Tape Player, Order From Ship Direct

1шт.

20

R54547

GROMMET

1шт.

21

97080C1

ANTENNA

1шт.

22

278032A1

GROUND STRAP

Antenna

1шт.

23

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

24

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

25

1983341C1

SWITCH

Dome Lamp

1шт.

26

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

28

86561136

MODULE

Flasher

1шт.

29

435831A1

FASTENER

1 x 12, Velcro, Cut From 121068A1

2шт.

30

87414866

RELAY,12V, 20A

20 amp

5шт.

33

87629635

MOUNTING PLATE

Steering Guidance Controller

1шт.

34

87518209

MODULE

Control Unit Row Guidance Steering System, If Equipped

1шт.

35

495-11028

WASHER,1/4", SAE

3шт.

36

832-10406

NUT,M6 x 1, Cl 8

3шт.
