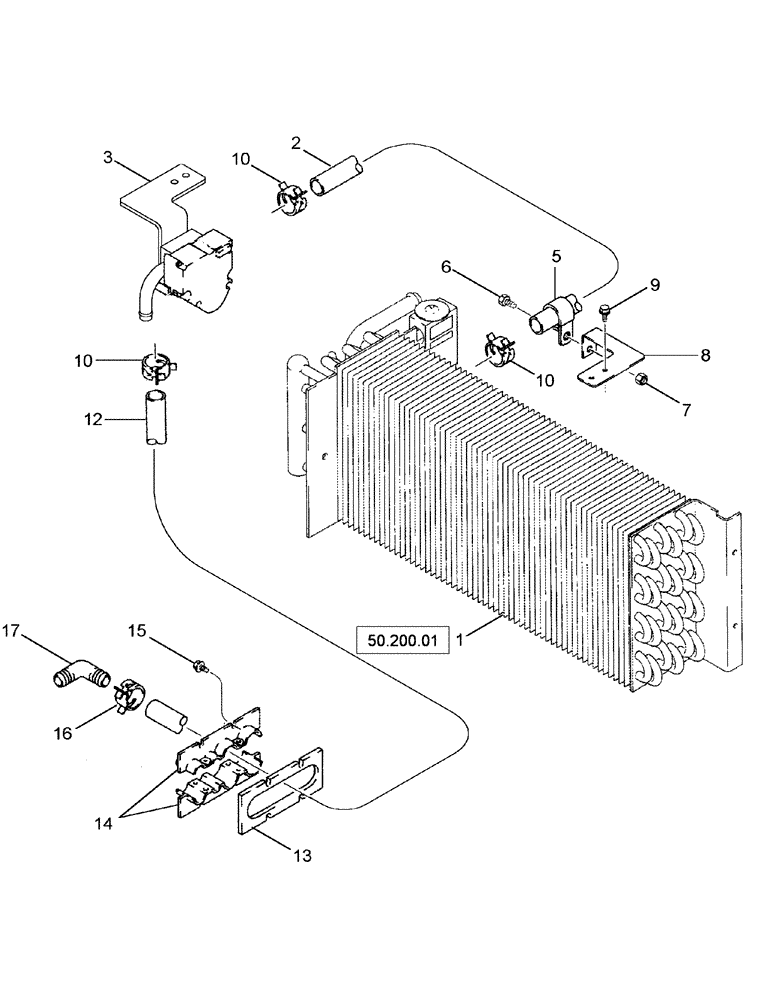

Запчасти Case IH 635 (50.200.02) - HEATING SYSTEM, EVAPORATOR CORE TO CAB, CHASSIS CONNECTIONS (50) - CAB CLIMATE CONTROL

1

449221A1

BODY

1шт.

2

377547A1

HOSE,15.50 mm ID

1шт.

3

87333840

HEATER VALVE,Water Control

1шт.

3b

488837C1

SPRING NUT

5/16 (Not Shown)

4шт.

4

141147A1

HOSE,15.50 mm ID x 190.30 mm

1шт.

5

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

181450A2

SUPPORT

1шт.

9

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

4шт.

10

1954736C1

HOSE CLAMP,#24

6шт.

11

1958774C1

HEATER HOSE

710 mm (28"), Cut From 97252CX

1шт.

12

377551A1

HEATER HOSE,15.50 mm ID x 838.00 mm

750 mm (29-5/8"), Cut from 97252CX

1шт.

13

125000A2

GASKET

1шт.

14

125264A2

CLAMP

2шт.

15

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

8шт.

16

1954736C1

HOSE CLAMP,#24

2шт.

17

127083A1

ELBOW,16mm OD x 17mm OD Bead

2шт.
