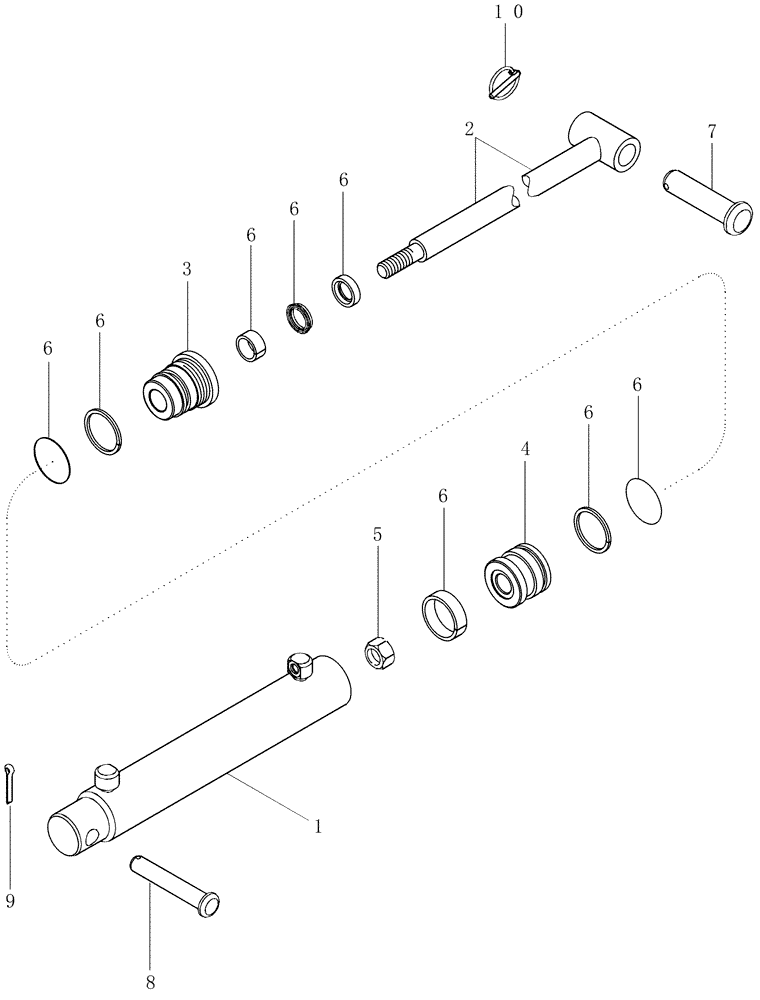

Запчасти Case IH 635 (35.910.33) - DRUM SPREAD CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

87272673

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 374.9mm Stroke

70 mm (2-3/4") ID x 375 mm (14-3/4") strk, Drum Spread, Inc. 1 - 6

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE

1шт.

2

87385488

ROD

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON, Cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

NUT

1шт.

6

87384989

SEAL KIT

Package

1шт.

7

439-11656

HEADED PIN,25.4mm OD x 88.9mm L

2шт.

8

439-11664

HEADED PIN,1" x 4"

2шт.

9

432-1620

COTTER PIN,1/4" x 1 1/4"

2шт.

10

A30338

PIN

1/4 Lynch

2шт.

11

76349

PLUG,9/16" - 18 ORB

Alternate Rod End Ports

1шт.
