Запчасти Case IH 635 (35.910.32) - DRUM SERVICE CLOSE AND SPREAD SYSTEM (35) - HYDRAULIC SYSTEMS

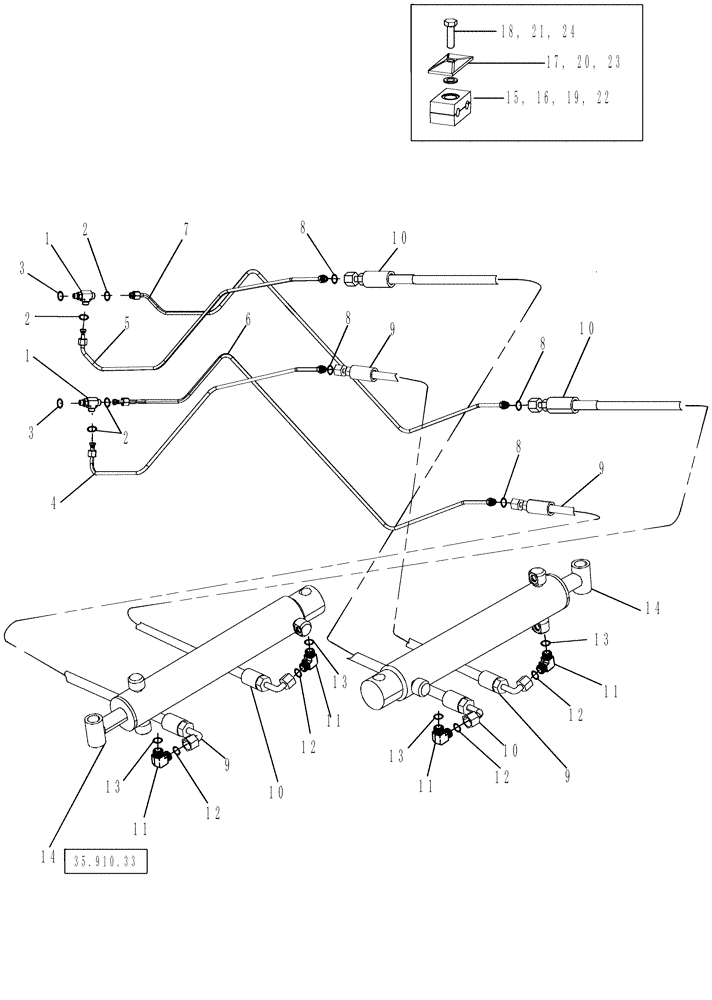

Схема запчастей Case IH 635 - (35.910.32) - DRUM SERVICE CLOSE AND SPREAD SYSTEM (35) - HYDRAULIC SYSTEMS
11
35.910.33
7
12
4
2
2
11
14
13
9
1
13
13
12
9
8
5
8
12
13
10
10
1
3
9
9
12
8
11
2
11
8
10
14
6
3
10

Артикул

Название

Примечание

Количество

1

201-406

TEE,11/16"-16 x 9/16"-18 Run, ORFS

Inc. 3, 4

2шт.

2

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

1988932C2

PIPE

Right Hand, Drum Close

1шт.

5

1988933C2

TUBE

Right Hand, Drum Spread

1шт.

6

1988934C2

PIPE

Left Hand, Drum Close

1шт.

7

1988935C2

PIPE

Left Hand, Drum Spread

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

9

87440385

HOSE

1575 mm (62 in), Drum Close

2шт.

10

1984282C2

HOSE

1450 mm (57 in), Drum Spread

2шт.

11

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 13, 14A

4шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

87272673

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 374.9mm Stroke

Service Spread

2шт.

15

1546025C1

CLAMP

2 Piece

2шт.

16

1546024C1

CLAMP

2 Piece

2шт.

17

1347127C1

PLATE

2шт.

18

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

19

1546024C1

CLAMP

2 Piece

4шт.

20

1347127C1

PLATE

2шт.

21

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

2шт.

22

1546026C1

CLAMP

2шт.

23

1347127C1

PLATE

2шт.

24

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

Выбрано товаров: 24
