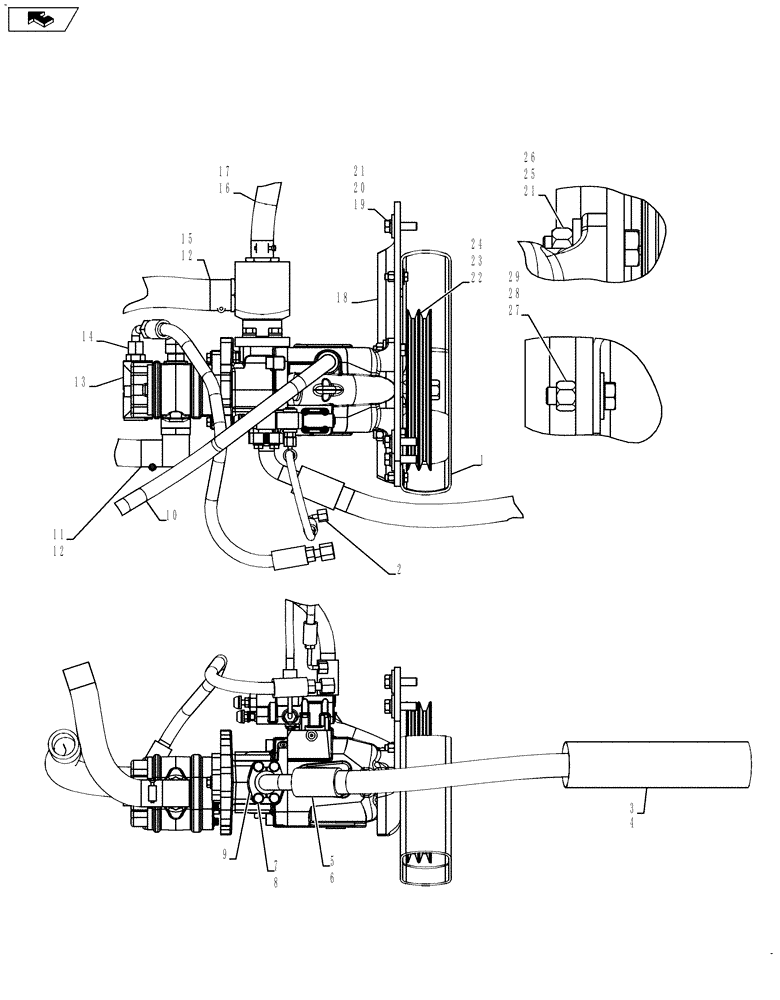

Запчасти Case IH 635 (35.910.24 [02]) - PACKAGER HYDRAULIC PUMP SYSTEM (35) - HYDRAULIC SYSTEMS

1

87367C2

GUARD

Pump Pulley Shield

1шт.

2

87523773

HOSE ASSY.

Compactor Sense Valve Jump

1шт.

3

87641081

HOSE,73.2mm ID x 304.8mm L

Cordura Sleeve

1шт.

4

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP 175-200mm

2шт.

5

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

6

87631061

HOSE ASSY.,25.4mm ID x 711mm L

Comp.Valve Pressure Jump Front

1шт.

7

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

877949C2

CLAMP

Split Flange

2шт.

10

87382193

HOSE ASSY.

Packager Pump Case Drain

1шт.

11

184618A1

FLEXIBLE HOSE

1шт.

12

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

2шт.

13

NSS

NOT SOLD SEPARAT

Ref. Fig. 35.910.24 (01)

1шт.

14

84406309

HOSE ASSY.

Air Pressure Screen Jump Front

1шт.

15

87437764

HOSE ASSY.

1шт.

16

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

17

408846A1

HOSE

1шт.

18

1546127C1

SUPPORT

Hydraulic Pump

1шт.

19

492-11050

LOCK WASHER,1/2"

3шт.

20

495-81162

WASHER,17/32" x 1 1/2" x .179"

3шт.

21

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

5шт.

22

1285257C4

PULLEY

Hydraulic Pump Drive, Serial Range: -JFGY0635VCT017801

1шт.

22

84427057

PULLEY

, Start Serial: JFGY0635VCT017801

1шт.

23

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

1шт.

24

231-46112

LOCK NUT,3/4"-16, GB

1шт.

25

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

26

425-108

NUT,1/2" - 13, Gr 5

2шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

28

495-21044

WASHER,3/8"

2шт.

29

231-4116

NUT,3/8"-16, GB

2шт.

22

1285257C4

PULLEY

Hydraulic Pump Drive

1шт.
