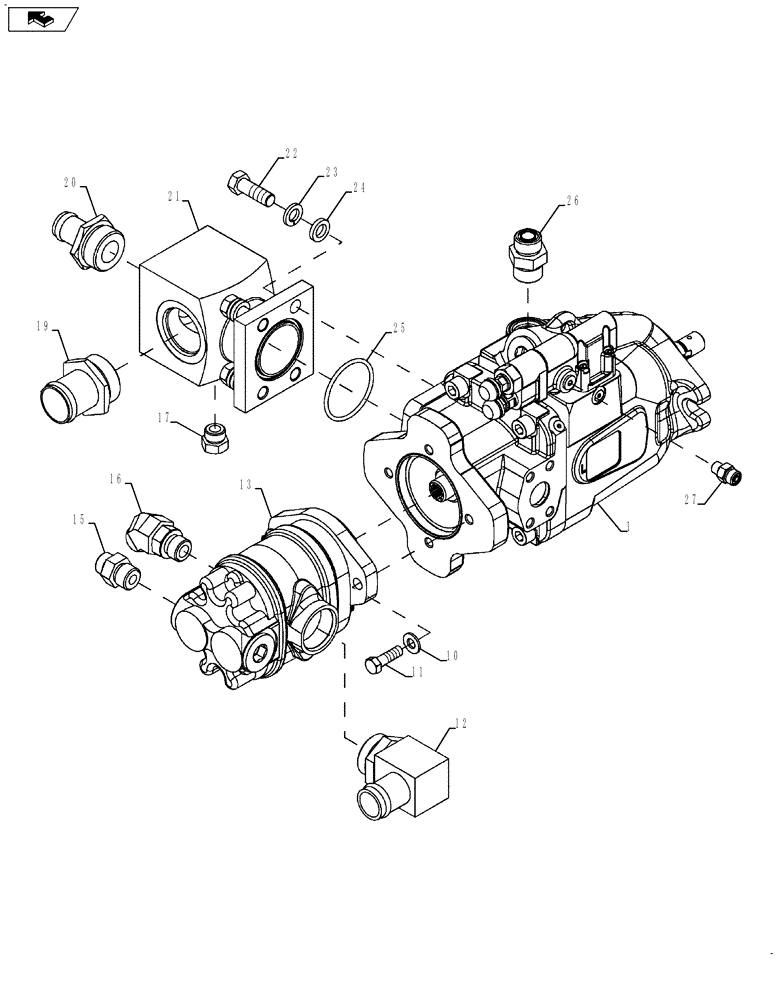

Запчасти Case IH 635 (35.910.24 [01]) - PACKAGER HYDRAULIC PUMP SYSTEM (35) - HYDRAULIC SYSTEMS

1

84192303

HYDRAULIC PUMP,50 CC

Assembly Inc. 2-9

1шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(Not Shown)

1шт.

3

86632547

PLUG,Hex, 5/16"-24 ORB

(Not Shown)

3шт.

4

238-6042

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

(Not Shown)

1шт.

5

66800

SNAP RING,2", Int, #200

(Not Shown)

1шт.

6

452779R1

KEY,1/4" Sq x 3/4", Par

(Not Shown)

1шт.

7

87581184

BEARING SET

Bearing Shaft ( Not Shown)

1шт.

8

87326119

COMPENSATOR

Assembly Hydraulic Pump (Not Shown)

1шт.

9

84233196

SEAL KIT

Seal Repair Pump And Comp (Not Shown)

1шт.

10

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

11

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

12

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Stem

1шт.

13

87423529

PUMP,11 CC

Double Gear Inc. 14

1шт.

14

291744A1

SEAL KIT

(Not Shown)

1шт.

15

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

1шт.

16

87301491

45 ELBOW

Stem

1шт.

17

214389

PLUG,3/4" - 16 ORB

Inc.18

1шт.

18

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(Not Shown)

1шт.

19

217-174

FITTING,1-1/2" Hose Barb x 1-7/8" - 12 Male ORB

Stem

1шт.

20

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

Stem

1шт.

21

87447763

PUMP

Manifold

1шт.

22

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

24

495-81019

WASHER,17/32" x 7/8" x .164"

4шт.

25

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

26

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

1шт.

27

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1шт.
