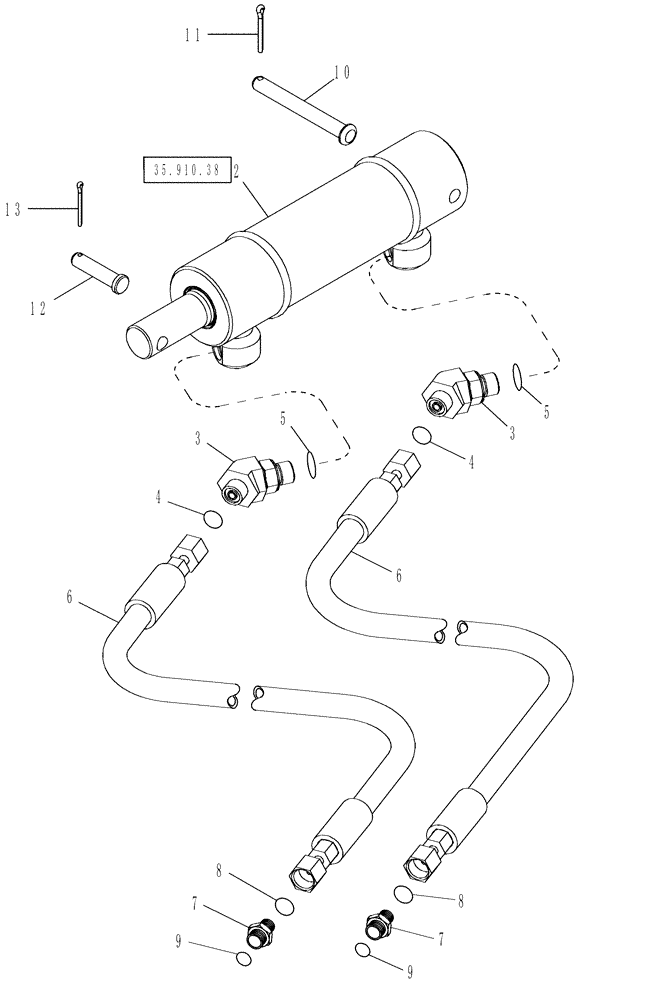

Запчасти Case IH 635 (35.910.23) - FAN ENGAGEMENT CYLINDER SYSTEM (35) - HYDRAULIC SYSTEMS

2

87449896

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

Fan Clutch

1шт.

2

87449896R

REMAN-HYD CYLINDER

Fan Clutch

1шт.

2

87449896C

CORE-HYD CYLINDER

Return Number

1шт.

3

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

Inc. 4, 5

2шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

87555269

HOSE ASSY.

1620 mm (63-3/4"), Fan Clutch Cylinder Engage and Disengage

2шт.

7

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Inc. 8, 9

2шт.

8

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

1шт.

11

432-816

COTTER PIN,1/8" x 1"

1шт.

12

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

1шт.

13

432-616

COTTER PIN,3/32" x 1"

1шт.
