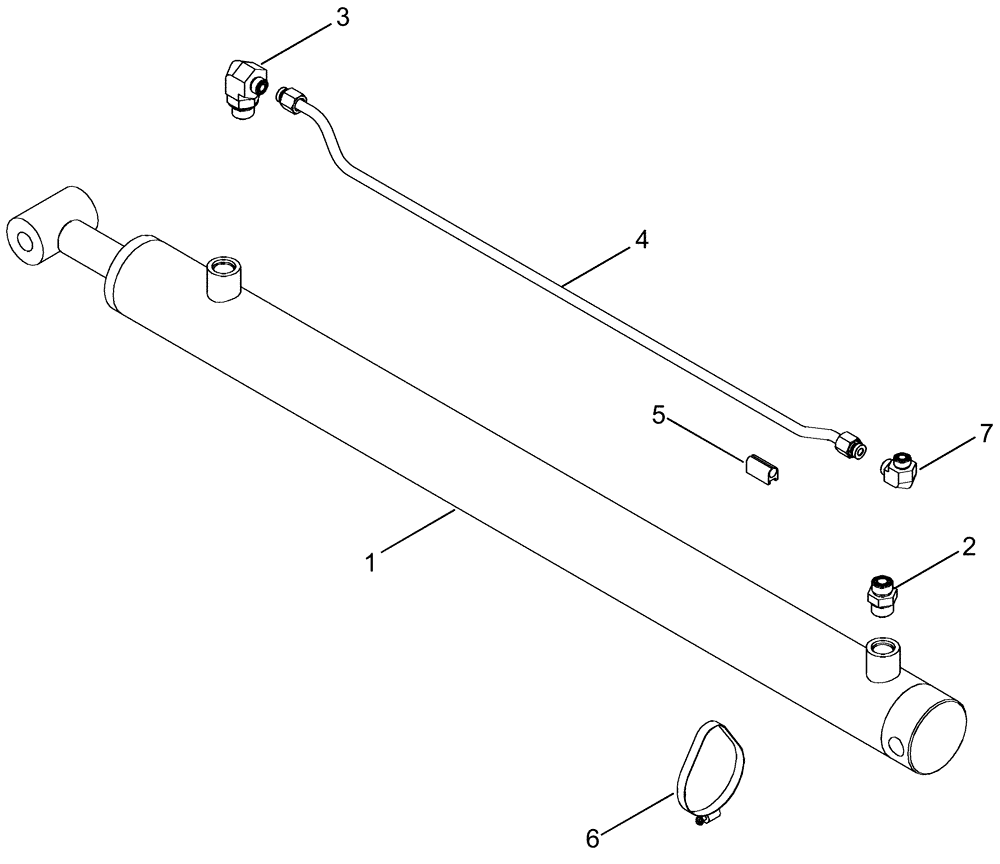

Запчасти Case IH 635 (35.910.20) - PRIMARY DOOR CYLINDER SYSTEM (35) - HYDRAULIC SYSTEMS

87434822

CYLINDER ASSY.

Primary Door, Inc. 1 - 7

2шт.

1

87524990

CYLINDER ASSY.,Double Acting, 44.5mm Rod, 1130.5mm Stroke

Primary Door

1шт.

2

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

Primary Door Cylinder

1шт.

3

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

Primary Door Cylinder

1шт.

4

87451481

HYD TUBE,0.5" OD

Primary Door Cylinder

1шт.

5

853967

SEAT CUSHION

Primary Door Cylinder

1шт.

6

214-1572

HOSE CLAMP,#72, 4.06" - 5", Type F Worm, W/ Liner

Primary Door Cylinder

1шт.

7

201-334

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Primary Door Cylinder

1шт.
