Запчасти Case IH 635 (35.910.19) - HYDRAULIC PRIMARY, SECONDARY DOOR SYSTEM (35) - HYDRAULIC SYSTEMS

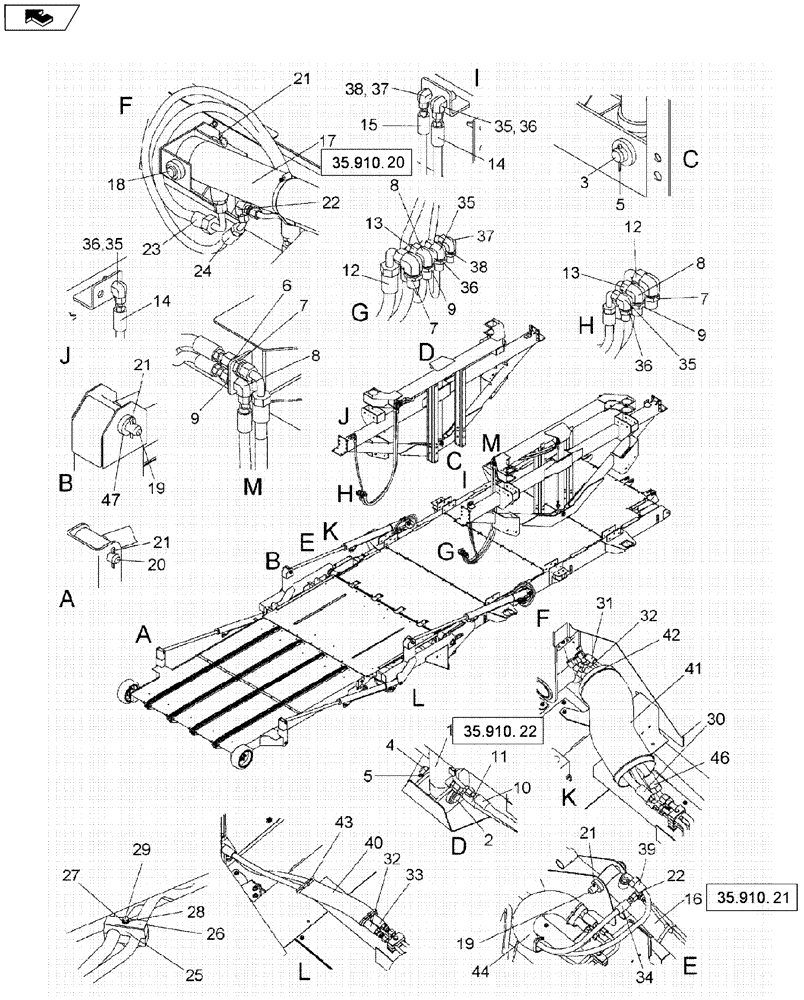

Схема запчастей Case IH 635 - (35.910.19) - HYDRAULIC PRIMARY, SECONDARY DOOR SYSTEM (35) - HYDRAULIC SYSTEMS
home

Артикул

Название

Примечание

Количество

1

84313529

HYDRAULIC CYLINDER

Compactor, 3.25" Bore

2шт.

1

84209399

CYLINDER

Compactor, 3.00" Bore, Start Year: 04-JAN-11

2шт.

2

87412703

PIN

Compactor Cylinder, Upper

2шт.

3

87412606

PIN

Compactor Cylinder, Lower

2шт.

4

495-81224

WASHER,38.89mm ID x 63.5mm OD x 3.35mm Thk

2шт.

5

432-1640

COTTER PIN,1/4" x 2 1/2"

4шт.

6

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

2шт.

7

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

8

201-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

2шт.

9

201-919

BHD LOCK NUT,1" - 14

2шт.

10

87454205

HOSE ASSY.

Compactor Raise

2шт.

11

87454206

HOSE ASSY.

Compactor Lower

2шт.

12

87454204

HYDRAULIC HOSE

Compactor Lower

2шт.

13

87454203

HYDRAULIC HOSE

Compactor Raise

2шт.

14

87454202

HOSE ASSY.

Auger Motor Forward/Reverse

2шт.

15

87448518

HOSE ASSY.

Case Drain

1шт.

16

87434828

CYLINDER ASSY.

Secondary Complete

2шт.

17

87434822

CYLINDER ASSY.

Primary Door Complete

2шт.

18

87675987

PIN

Primary Door, Barrel

2шт.

19

87519420

PIN

Primary Door Rod, Secondary Door Barrel

4шт.

20

87448105

PIN

Secondary Door, Rod

2шт.

21

432-1628

COTTER PIN,1/4" x 1 3/4"

8шт.

22

201-334

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

23

87454208

HYDRAULIC HOSE

Door Cylinder Master Open

2шт.

24

87454207

HYDRAULIC HOSE

2шт.

25

87000158

CLAMP

2шт.

26

1324469C1

PLATE

Hose Clamp

2шт.

27

495-11034

WASHER,5/16", SAE

4шт.

28

492-11031

LOCK WASHER,5/16"

2шт.

29

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

30

87454214

HYDRAULIC HOSE

Motor Return

1шт.

31

87454213

HYDRAULIC HOSE

Case Drain Jump

1шт.

32

87454212

HYDRAULIC HOSE

Door Open Jump

2шт.

33

87454211

HYDRAULIC HOSE

Door Close Jump

1шт.

34

87454209

HOSE ASSY.

Cylinder Door Close

2шт.

35

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

36

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

37

201-357

HYD CONNECTOR,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

1шт.

38

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

39

87454210

HOSE ASSY.

Cylinder Door Open

2шт.

40

87415007

SLEEVE

1шт.

41

87539816

HOSE,111.76mm ID x 788mm L

1шт.

42

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

43

306132C1

CABLE TIE,14.5" L

CABLE STRAP

6шт.

44

87415926

SLEEVE

2шт.

45

87539813

HOSE,73.15mm ID x 2134mm L

Not Shown

2шт.

46

84166768

HOSE ASSY.

Motor Return

1шт.

47

495-11106

WASHER,1", SAE

2шт.

Выбрано товаров: 48
