Запчасти Case IH 635 (35.910.18) - MODULE TILT CYLINDER SYSTEM (35) - HYDRAULIC SYSTEMS

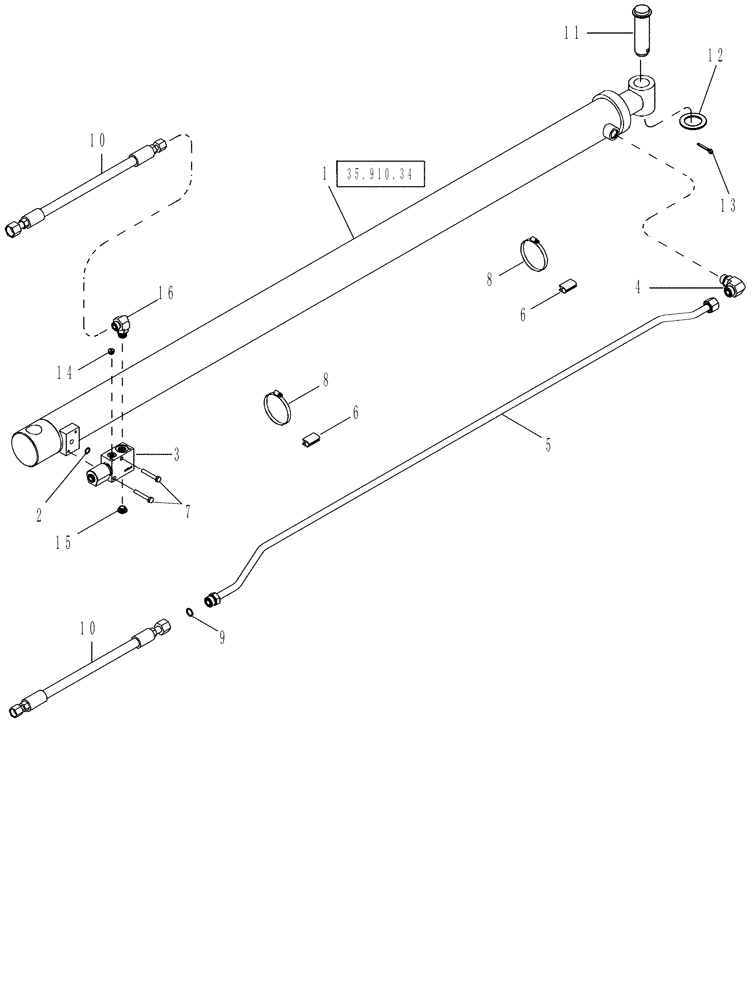

Схема запчастей Case IH 635 - (35.910.18) - MODULE TILT CYLINDER SYSTEM (35) - HYDRAULIC SYSTEMS
5
7
10
13
11
10
2
16
1
9
3
6
35.910.34
8
8
6
12
14
4
15

Артикул

Название

Примечание

Количество

1

87524989

CYLINDER,Double Acting, 57.2mm Rod, 1759mm Stroke

Tilt

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

87415182

VALVE

Load Hold

1шт.

4

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

5

87332114

TUBE,0.625" OD

Tilt Lower

1шт.

6

853966

SEAT CUSHION

2шт.

7

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

8

214-1564

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm, W/ Liner

2шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

87388266

HOSE ASSY.

Tilt Cylinder

2шт.

11

87412703

PIN

2шт.

12

495-81224

WASHER,38.89mm ID x 63.5mm OD x 3.35mm Thk

2шт.

13

432-1640

COTTER PIN,1/4" x 2 1/2"

2шт.

14

218-5207

PLUG,Hex Soc, 7/16"-20 ORB

1шт.

15

218-5210

PLUG,Hex, 3/4"-16 ORB

1шт.

16

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

Выбрано товаров: 16
