(35.910.17) - SLAVE TELESCOPING CHUTES CYLINDER ASSEMBLY

Запчасти Case IH 635 (35.910.17) - SLAVE TELESCOPING CHUTES CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

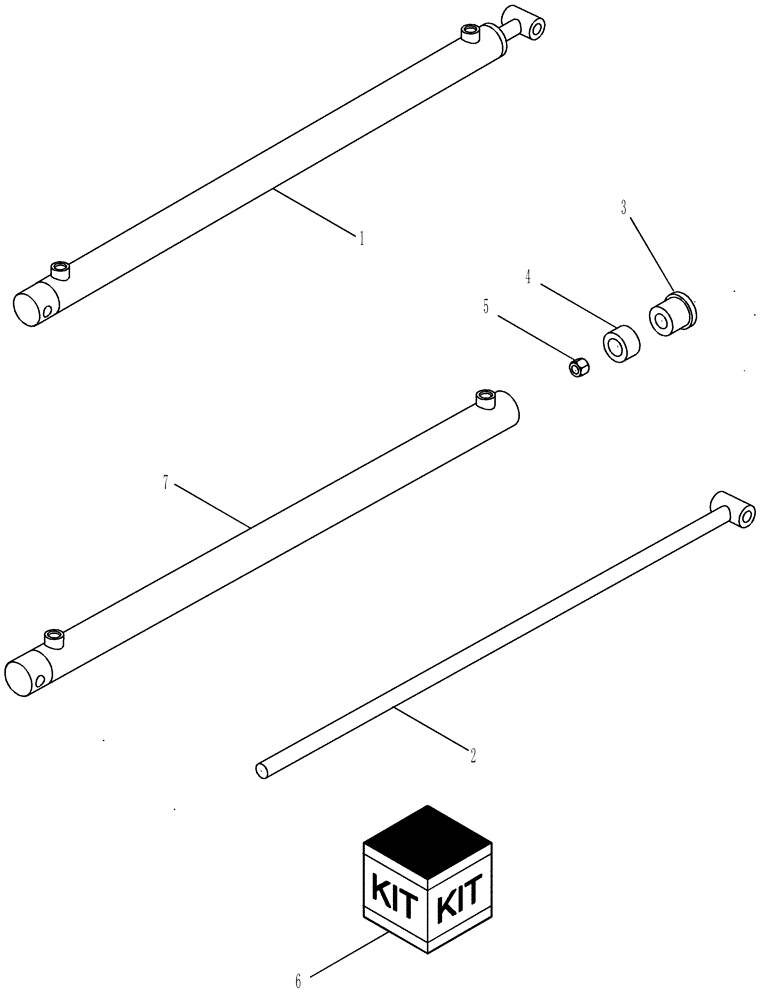

Схема запчастей Case IH 635 - (35.910.17) - SLAVE TELESCOPING CHUTES CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS
3
2
7
4
6
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87382534

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 1000.5mm Stroke

Slave Telescoping Chutes, Inc. 2 - 6

1шт.

2

87727857

ROD ASSY.

Slave Telescoping Chutes Cylinder

1шт.

3

87728384

ROD ASSY.

Slave Telescoping Chutes Cylinder

1шт.

4

87728385

PISTON

Slave Telescoping Chutes Cylinder

1шт.

5

232-46410

LOCK NUT

Slave Telescoping Chutes Cylinder

1шт.

6

87728386

SERVICE KIT

Slave Telescoping Chutes Cylinder

1шт.

Выбрано товаров: 6
