(35.910.16) - MASTER TELESCOPING CHUTES CYLINDER ASSEMBLY

Запчасти Case IH 635 (35.910.16) - MASTER TELESCOPING CHUTES CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

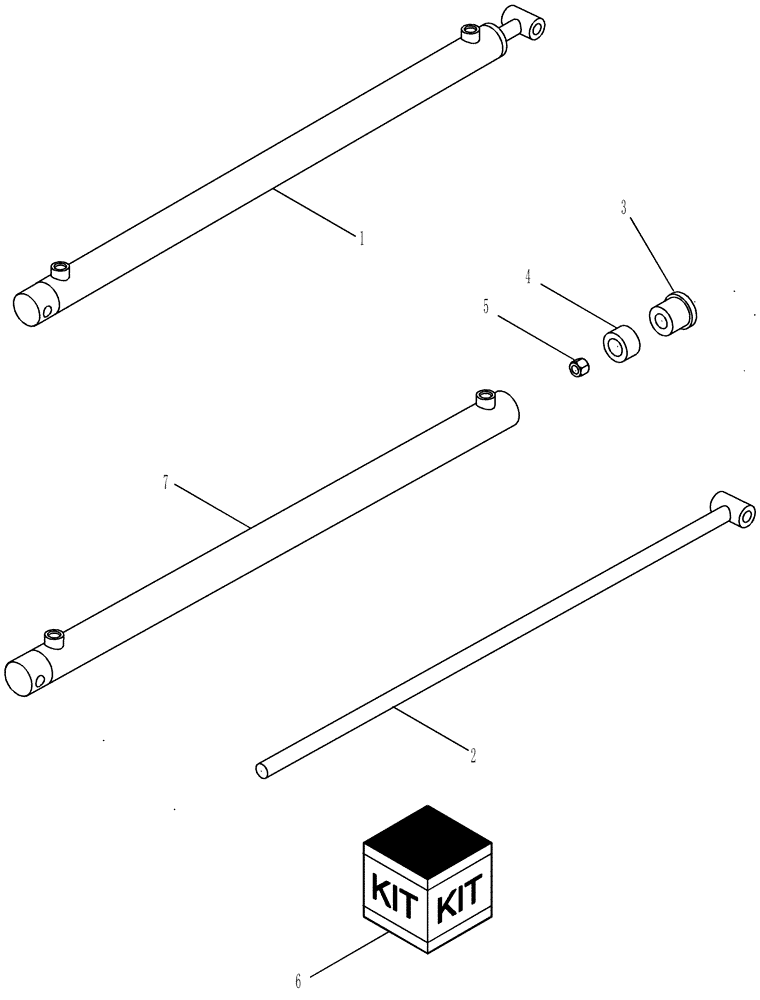

Схема запчастей Case IH 635 - (35.910.16) - MASTER TELESCOPING CHUTES CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS
6
4
7
1
3
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87382533

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 1000.5mm Stroke

Master Telescoping Chutes, Inc. 2 - 6

1шт.

2

87727857

ROD ASSY.

Master Telescoping Chutes Cylinder

1шт.

3

87727858

ROD ASSY.

Master Telescoping Chutes Cylinder

1шт.

4

87727859

PISTON

Master Telescoping Chutes Cylinder

1шт.

5

232-46410

LOCK NUT

Master Telescoping Chutes Cylinder

1шт.

6

87727860

SERVICE KIT

Master Telescoping Chutes Cylinder

1шт.
