Запчасти Case IH 635 (35.910.14) - HYDRAULIC TELESCOPING CHUTES SYSTEM (35) - HYDRAULIC SYSTEMS

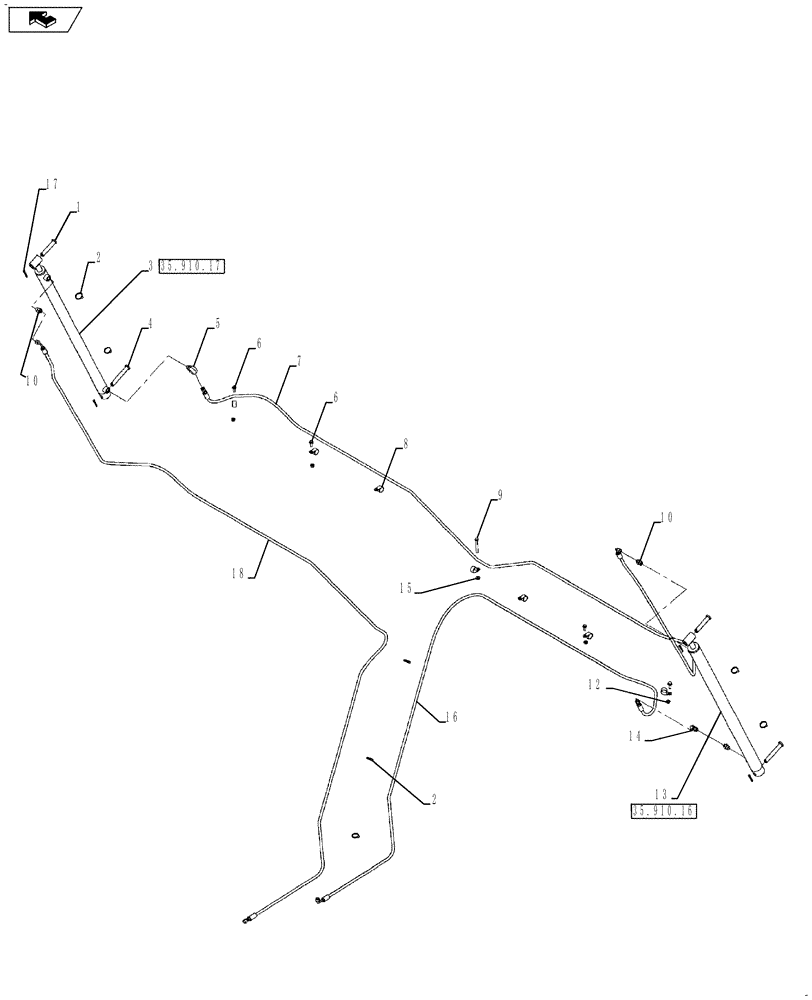

Схема запчастей Case IH 635 - (35.910.14) - HYDRAULIC TELESCOPING CHUTES SYSTEM (35) - HYDRAULIC SYSTEMS
8
15
6
2
6
10
17
2
9
4
35.910.17
7
18
5
35.910.16
14
3
16
1
10
12
13

Артикул

Название

Примечание

Количество

1

87477167

HEADED PIN

2шт.

2

291207C1

CLAMP

Strap Cable

7шт.

3

87382534

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 1000.5mm Stroke

Ref. 35.910.17

1шт.

4

87477168

HEADED PIN

2шт.

5

201-325

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

1шт.

6

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

7

87724624

HOSE ASSY.

Telescoping Chutes

1шт.

8

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

7шт.

9

9637240

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

1шт.

10

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Connector Inc 11

3шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

12

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

13

87382533

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 1000.5mm Stroke

Ref. 35.910.16

1шт.

14

87017578

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Fem Sw ORFS

1шт.

15

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

16

84386305

FLEXIBLE HOSE

Telescoping Chutes Raise

1шт.

17

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

18

84386303

BRACKET

HOSE, Assembly Unloader Swing

1шт.

Выбрано товаров: 18
