(35.910.13) - VALVE, ELECTRONIC DRUM HEIGHT CONTROL

Запчасти Case IH 635 (35.910.13) - VALVE, ELECTRONIC DRUM HEIGHT CONTROL (35) - HYDRAULIC SYSTEMS

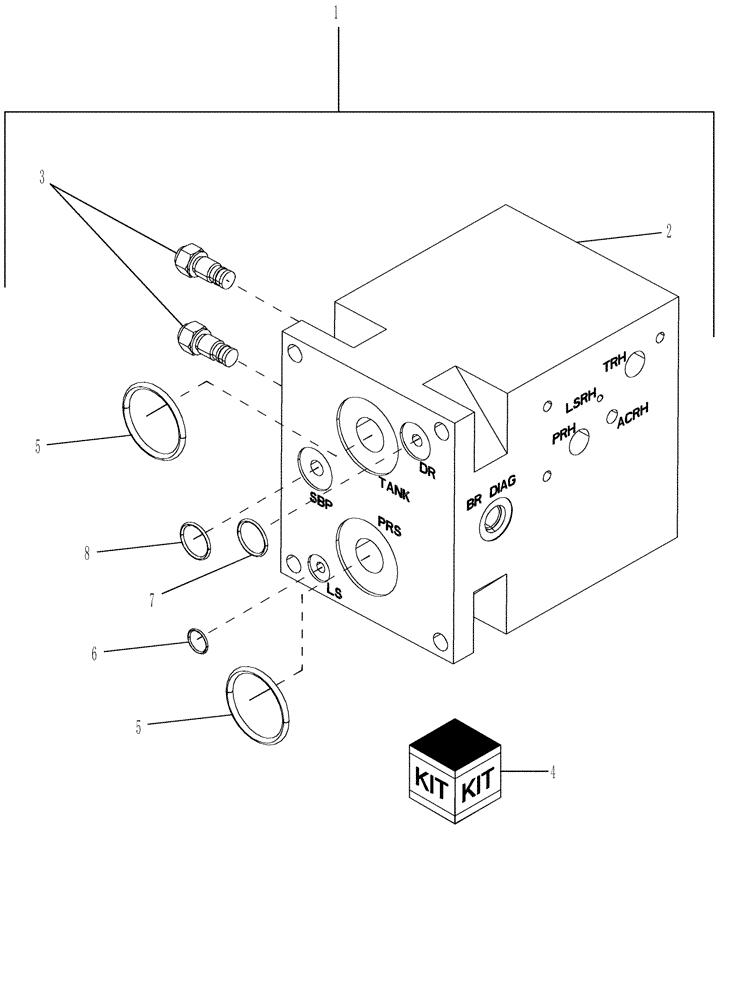

Схема запчастей Case IH 635 - (35.910.13) - VALVE, ELECTRONIC DRUM HEIGHT CONTROL (35) - HYDRAULIC SYSTEMS
1
3
8
2
4
5
6
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87473359

VALVE

Electronic Drum Height Control, Inc. 2-8

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE BODY

1шт.

3

190704A1

CHECK VALVE

Inc. 4

2шт.

4

190707A1

SEAL KIT

1шт.

5

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

6

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

7

87584289

O-RING,0.546" ID x 0.685" OD x 0.139"

1шт.

8

87584290

O-RING,0.671" ID x 0.81" OD x 0.139"

1шт.
