Запчасти Case IH 635 (35.910.11 [02]) - TILT VALVE (35) - HYDRAULIC SYSTEMS

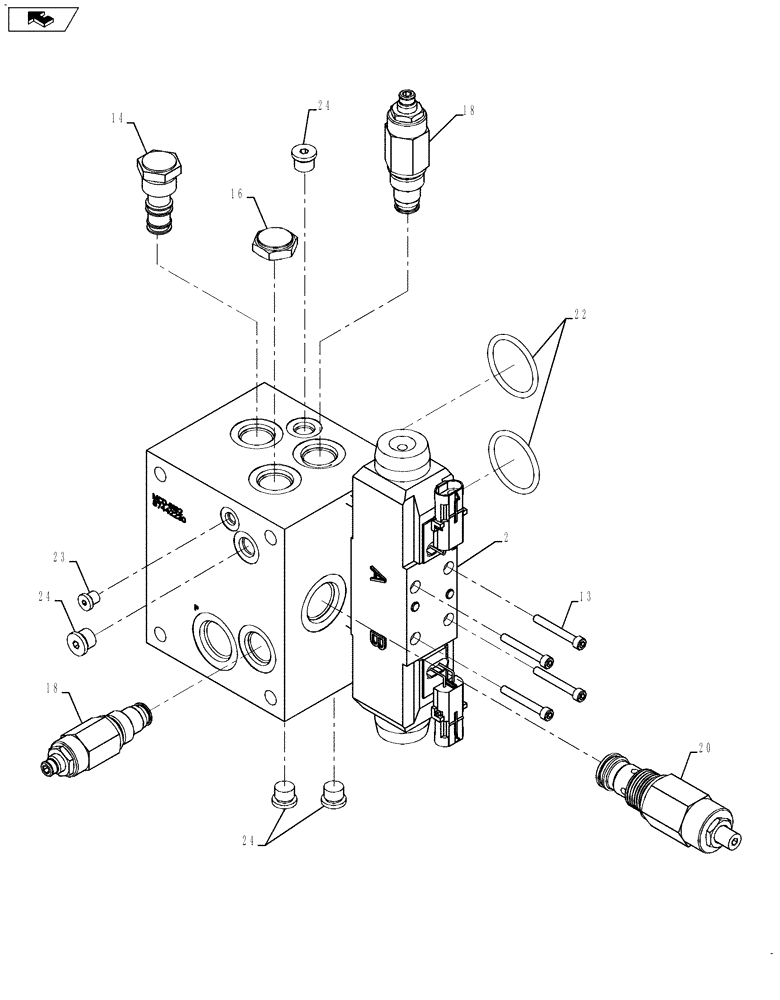

Схема запчастей Case IH 635 - (35.910.11 [02]) - TILT VALVE (35) - HYDRAULIC SYSTEMS
13
23
18
24
20
16
22
24
18
2
14
24

Артикул

Название

Примечание

Количество

1

87442230

VALVE

Tilt Valve Inc. 2-24

1шт.

2

87585685

HYDRAULIC VALVE

4-Way 3 Position Inc. 3-6

1шт.

3

87026108

COIL ASSY.

C-Top (Not Shown)

2шт.

4

188106A1

NUT

(Not Shown)

2шт.

5

122056

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

(Not Shown)

2шт.

6

191120A1

SEAL KIT

Valves Inc.7-12 (Not Shown)

1шт.

7

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

(Not Shown)

8шт.

8

514098

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

(Not Shown)

2шт.

9

272018

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

(Not Shown)

2шт.

10

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

(Not Shown)

2шт.

11

511029

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

(Not Shown)

2шт.

12

87716168

SEAL

Backup Ring (Not Shown)

2шт.

13

86514807

SET OF SCREWS,#10 - 24 x 1-1/4"

Kit

1шт.

14

190712A1

VALVE

Inc.15

1шт.

15

1260872C91

SEAL KIT

(Not Shown)

1шт.

16

87585738

HYDRAULIC VALVE

Check Pilot Operated Inc. 17

1шт.

17

87024936

SEAL KIT

(Not Shown)

1шт.

18

87585739

HYDRAULIC VALVE

Flow Metering Inc. 19

2шт.

19

86508168

SEAL KIT

(Not Shown)

1шт.

20

87585740

HYDRAULIC VALVE

Flow Metering Inc. 21

1шт.

21

87585903

SEAL KIT

Repair Kit (Not Shown)

1шт.

22

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

23

86632547

PLUG,Hex, 5/16"-24 ORB

1шт.

24

87035062

PLUG,Hex, 1/2"-20 ORB

4шт.

Выбрано товаров: 24
