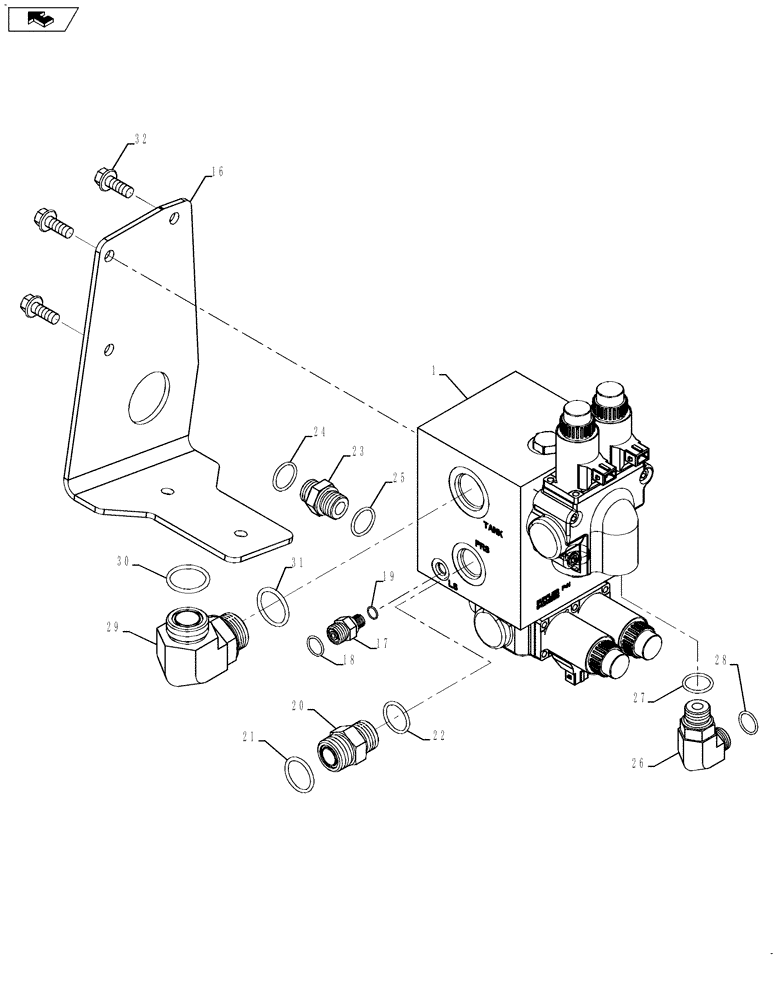

Запчасти Case IH 635 (35.910.09 [02]) - MANIFOLD, HYDRAULIC ASSEMBLY ELECTRIC DRUM CONTROL (35) - HYDRAULIC SYSTEMS

1

84201855

HYDRAULIC SYSTEM

Manifold Electric Drum Control, Inc. 2-15

1шт.

2

84460994

HYDRAULIC VALVE

Manifold Inc. 3 (Not Shown)

2шт.

3

87326754

HYDRAULIC VALVE

Manifold Inc. 4-5 (Not Shown)

1шт.

4

84435941

SEAL KIT

(Not Shown)

1шт.

5

5190767

SOLENOID

Coil Assembly Inc. 6-8 (Not Shown)

2шт.

6

87601705

PLATE

Fastening (Not Shown)

1шт.

7

87603340

SOLENOID

Core Tube (Not Shown)

1шт.

8

5190768

COIL ASSY.

Solenoid Inc.9-12 (Not Shown)

1шт.

9

87573514

COIL

Solenoid (Not Shown)

1шт.

10

87573515

CAP,27.2mm OD x 25.1mm L

Nut, Solenoid Coil (Not Shown)

1шт.

11

87635978

O-RING,21mm ID x 1.5mm Width

(Not Shown)

1шт.

12

87635979

O-RING,2.4mm Thk x 19.6mm ID

(Not Shown)

1шт.

13

81972

HEX SOC SCREW,5/16" - 18 x 1-3/4"

(Not Shown)

6шт.

14

87499290

CHECK VALVE

(Not Shown) Inc. 15

2шт.

15

84262371

SEAL KIT

(Not Shown)

1шт.

16

84203051

BRACKET, SUPPORTING

Valve Mounting

1шт.

17

9840330

HYD CONNECTOR,11/16" - 16 ORFS x 7/16" - 20 ORB

Inc. 18-19

1шт.

18

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Inc. 21-22

1шт.

21

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

Inc. 24-25

1шт.

24

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

25

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

86579692

90 ELBOW,90 Degree, 13/16"-18 ORFS x M22 x 1.5 ORB

90 Degree Inc. 27-28

1шт.

27

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

28

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

29

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

Inc. 30-31

1шт.

30

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

31

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

32

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

3шт.
