Запчасти Case IH 635 (35.910.09 [01]) - PACKAGE CHASSIS VALVE J33 (35) - HYDRAULIC SYSTEMS

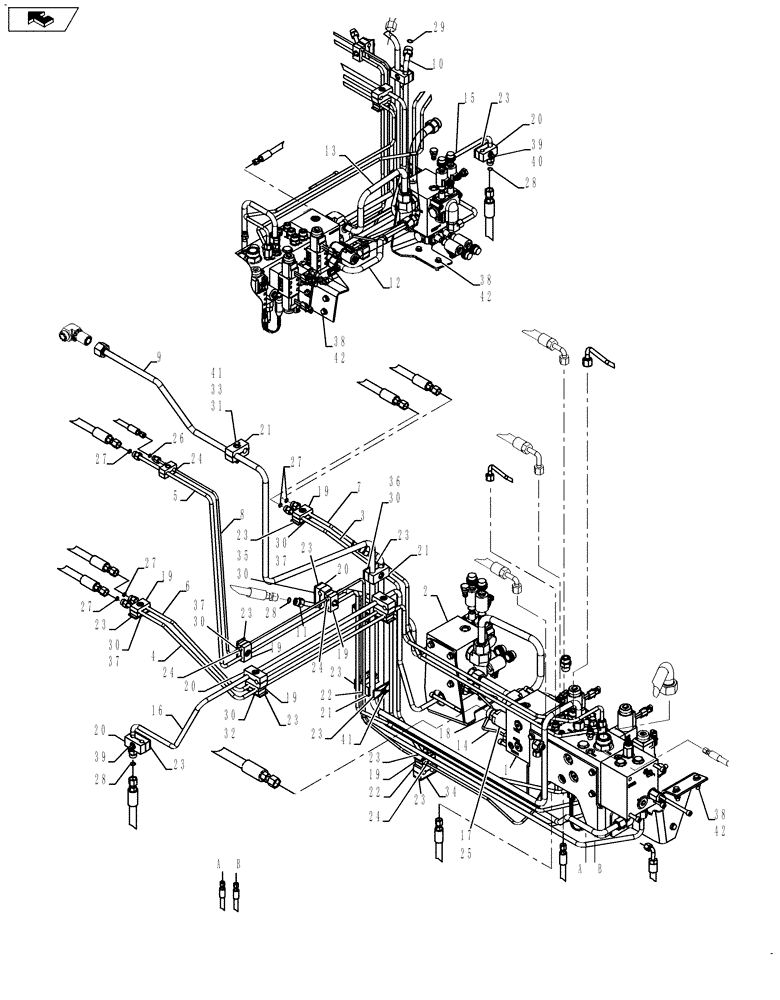

Схема запчастей Case IH 635 - (35.910.09 [01]) - PACKAGE CHASSIS VALVE J33 (35) - HYDRAULIC SYSTEMS
19
38
20
9
29
22
39
a b
42
10
24
30
23
14
5
16
11
23
6
42
41
23
19
20
26
28
27
23
23
35
42
27
27
30
15
22
3
19
23
34
37
39
32
28
23
38
30
40
1
2
13
21
4
20
41
27
23
30
23
19
38
31
8
21
23
19
24
12
37
20
30
23
18
24
7
37
23
17
30
36
33
19
24
28
a b
21
25

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Manifold Hydraulic Assembly Ref. 35.910.10 (02) (03) (04)

1шт.

2

NSS

NOT SOLD SEPARAT

Mainifold Hydraulic Assembly Ref. 35.910.09 (03)

1шт.

3

87310985

TUBE,0.375" OD

Sense To Steering

1шт.

4

87311931

TUBE,0.375" OD

Drum Service Left Hand

1шт.

5

87312610

TUBE,0.375" OD

Steering Pressure

1шт.

6

87312783

TUBE,0.375" OD

Drum Service Harvest Left Hand

1шт.

7

87313677

TUBE,0.375" OD

Drum Service Harvest Right Hand

1шт.

8

87314113

TUBE,0.25" OD

Sense To Steering

1шт.

9

87395071

HYD TUBE,.625" OD

Steering Return

1шт.

10

87395072

HYD TUBE,15.88 mm OD x 980 mm L

Tilt Raise

1шт.

11

87395073

HYD TUBE,12.70 mm OD x 1000 mm L

Tilt Lower

1шт.

12

84204197

TUBE ASSY.

Hydraulic Assembly Electric Drum Pressure

1шт.

13

84204198

TUBE ASSY.

Hydraulic Assembly Electric Drum Return

1шт.

14

84204199

TUBE ASSY.

Hydraulic Assembly Electric Drum LS

1шт.

15

84204672

TUBE ASSY.

Hydraulic Assembly Electric Drum Right Hand

1шт.

16

84204673

TUBE ASSY.

Hydraulic Assembly Electric Drum Left Hand

1шт.

17

93306C2

FILTER

1шт.

18

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Inc 25,43

1шт.

19

1546024C1

CLAMP

Hydraulic Tube

7шт.

20

1546025C1

CLAMP

Hydraulic Tube

5шт.

21

1546026C1

CLAMP

Hydraulic Tube

3шт.

22

87000141

CLAMP

Hydrailic Tube

2шт.

23

1347127C1

PLATE

13шт.

24

163489C1

STRIP

Insulator

4шт.

25

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

26

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

27

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

28

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

29

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

30

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

7шт.

31

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

32

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

33

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

34

280444

BOLT,Hex, 5/16" - 18 x 3 3/4", Gr 5

2шт.

35

280275

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

1шт.

36

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

1шт.

37

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

3шт.

38

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

7шт.

39

87342612

BOLT

2шт.

40

523282

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

41

145458

SERRATED NUT,5/16"-18 GR 5 ZND

3шт.

42

247780

SERRATED NUT,Flg, USR, 3/8"-16

7шт.

Выбрано товаров: 42
