Запчасти Case IH 635 (35.910.06) - HYDRAULIC PLUMBING, AUGER, COMPACTOR, AND DOORS, RIGHT HAND (35) - HYDRAULIC SYSTEMS

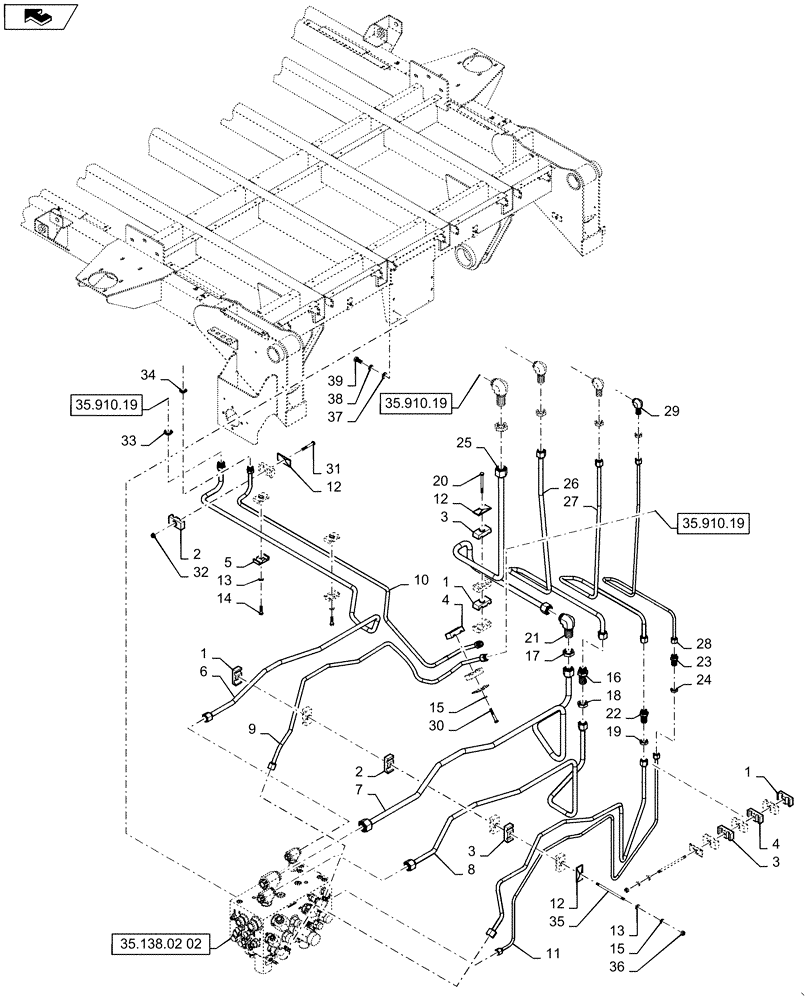

Схема запчастей Case IH 635 - (35.910.06) - HYDRAULIC PLUMBING, AUGER, COMPACTOR, AND DOORS, RIGHT HAND (35) - HYDRAULIC SYSTEMS
12
13
7
28
2
20
1
12
22
3
33
5
23
15
15
19
37
2
4
29
4
8
35
35.910.19
31
14
34
home
36
35.910.19
12
35.910.19
3
21
13
18
11
16
35.138.02 02
3
38
6
1
10
17
25
30
39
9
24
32
27
1
26

Артикул

Название

Примечание

Количество

1

87000144

CLAMP

3шт.

2

87000139

CLAMP

2шт.

3

87105732

CLAMP

3шт.

4

1546025C1

CLAMP

2шт.

5

87451102

CLAMP

2шт.

6

87450071

HYD TUBE,0.625" OD

Door Open, RH

1шт.

7

87450072

HYD TUBE,0.75" OD

Compactor Lower, RH

1шт.

8

87450073

HYD TUBE,0.625" OD

Compactor Rise, RH

1шт.

9

87450077

HYD TUBE,0.5" OD

Door Close Main

1шт.

10

87450417

HYD TUBE

Cylinder Connection, Door Open, RH

1шт.

11

87451578

HYD TUBE,0.375" OD

Auger Motor Case Drain

1шт.

12

1347127C1

PLATE

4шт.

13

495-11034

WASHER,5/16", SAE

4шт.

14

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

15

492-11031

LOCK WASHER,5/16"

3шт.

16

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

1шт.

17

218-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

18

201-919

BHD LOCK NUT,1" - 14

1шт.

19

201-903

TUBE NUT,Blkhd, 13/16"-16

1шт.

20

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

1шт.

21

201-323

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

1шт.

22

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

1шт.

23

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

1шт.

24

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

2шт.

25

87451928

HYD TUBE,0.75" OD

Auger Compactor, RH Basket Lower

1шт.

26

87451929

HYD TUBE,0.625" OD

Auger Compactor Basket Raise

1шт.

27

87451930

HYD TUBE,0.5" OD

Auger Motor, RH Basket

1шт.

28

87451931

HYD TUBE,0.375" OD

Auger Motor Case Drain Basket

1шт.

29

201-357

HYD CONNECTOR,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

1шт.

30

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

31

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

33

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

35

87675187

ROD

Threaded, Hydraulic Clamp

2шт.

36

425-105

NUT,5/16"-18, G5

2шт.

37

495-11047

WASHER,7/16", SAE

4шт.

38

492-21044

LOCK WASHER,7/16"

4шт.

39

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

Выбрано товаров: 39
