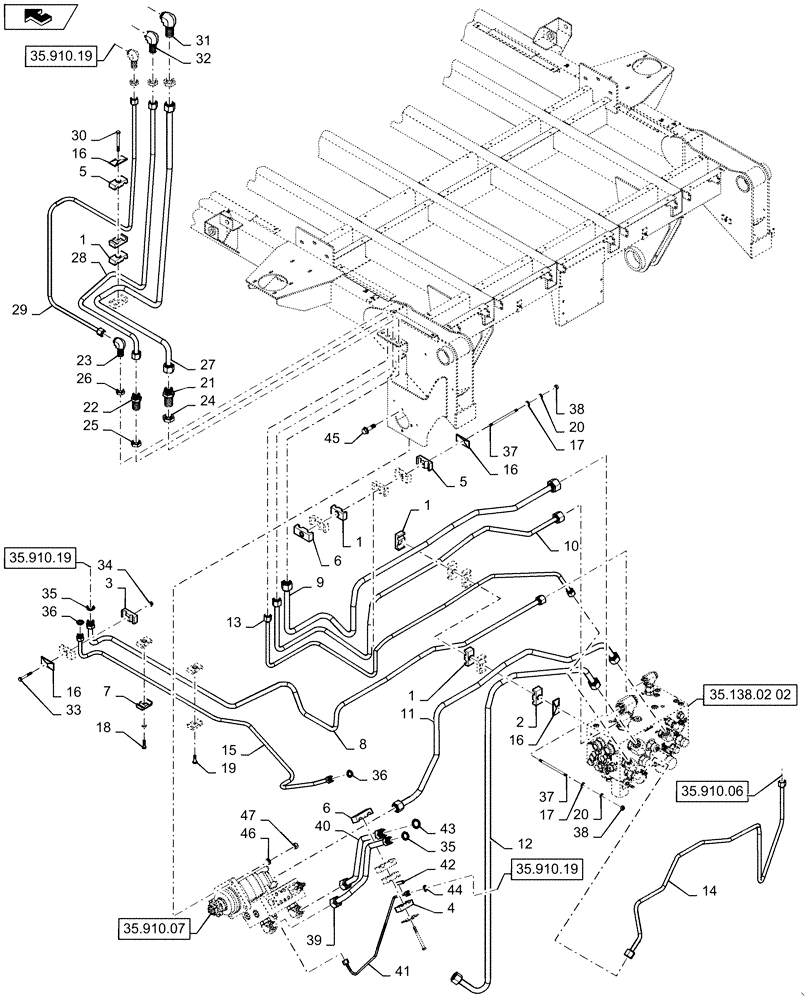

Запчасти Case IH 635 (35.910.05) - HYDRAULIC PLUMBING, AUGER, COMPACTOR, AND DOORS, LEFT HAND (35) - HYDRAULIC SYSTEMS

1

87000144

CLAMP

4шт.

2

87000153

CLAMP,2 Hole, 19.05 - 12.70 mm Dia Ribbed, 37mm H x 67mm L

1шт.

3

87000139

CLAMP

3шт.

4

87105732

CLAMP

1шт.

5

1546025C1

CLAMP

2шт.

6

1546027C1

CLAMP

2шт.

7

87451102

CLAMP

2шт.

8

87449726

TUBE,0.625" OD

LH Side

1шт.

9

87449728

TUBE,0.75" OD

Lower, LH

1шт.

10

87449729

TUBE,0.625" OD

Compactor Raise, LH

1шт.

11

87449730

HYD TUBE,0.75" OD

Unloader Motor Pressure

1шт.

12

87449731

HYD TUBE,0.75" OD

Unloader Motor Return

1шт.

13

87449844

TUBE,0.5" OD

Auger Reverse

1шт.

14

87450075

HYD TUBE,0.5" OD

Auger Forward

1шт.

15

87450070

TUBE,0.5" OD

Cylinder Connection Door Open LH

1шт.

16

1347127C1

PLATE

Hose Clamp

5шт.

17

495-11034

WASHER,5/16", SAE

4шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

3шт.

19

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

1шт.

20

492-11031

LOCK WASHER,5/16"

2шт.

21

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

1шт.

22

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

2шт.

23

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

3шт.

24

218-1249

BHD LOCK NUT,1-3/16" - 12

3шт.

25

201-919

BHD LOCK NUT,1" - 14

3шт.

26

201-903

TUBE NUT,Blkhd, 13/16"-16

3шт.

27

87452488

HYD TUBE,0.75" OD

Compactor, LH Basket Lower

1шт.

28

87452489

HYD TUBE,.625" OD

Compactor, LH Basket Raise

1шт.

29

87452490

HYD TUBE,0.5" OD

Auger Motor LH Basket

1шт.

30

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

1шт.

31

201-323

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

2шт.

32

201-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

2шт.

33

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

35

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

36

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

37

87675187

ROD

2шт.

38

425-105

NUT,5/16"-18, G5

2шт.

39

87448516

TUBE,0.75" OD

Motor Return

1шт.

40

87448517

TUBE,0.75" OD

Motor Inlet

1шт.

41

87448519

TUBE,0.25" OD

Case Drain

1шт.

42

163489C1

STRIP

1шт.

43

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

44

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

45

409-7828

BOLT,Hex Flg, 1/2" - 13 x 1 3/4", Spcl

4шт.

46

492-11050

LOCK WASHER,1/2"

4шт.

47

425-108

NUT,1/2" - 13, Gr 5

4шт.
