Запчасти Case IH 635 (35.910.04) - HYDRAULIC PLUMBING, COMPACTOR VALVE AND AUGER PRESSURE (35) - HYDRAULIC SYSTEMS

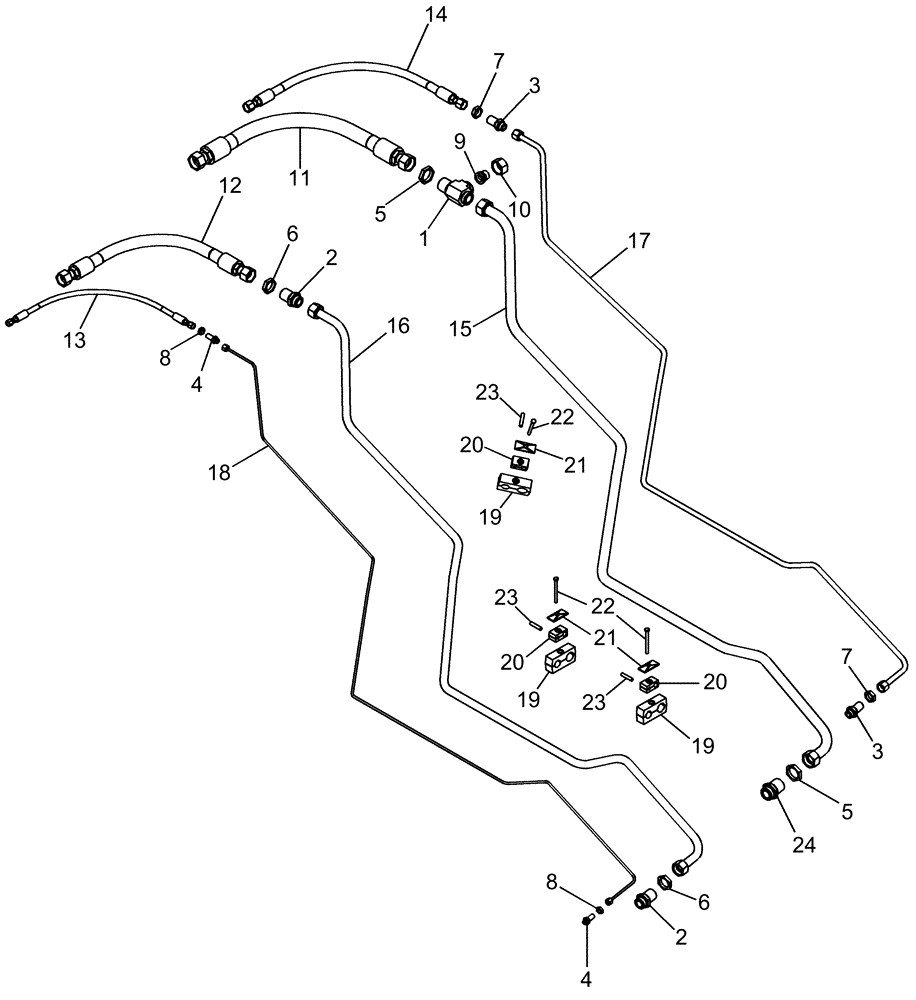

Схема запчастей Case IH 635 - (35.910.04) - HYDRAULIC PLUMBING, COMPACTOR VALVE AND AUGER PRESSURE (35) - HYDRAULIC SYSTEMS
8
8
9
12
20
16
23
20
15
19
5
18
14
3
4
2
6
23
20
2
3
22
21
7
4
7
21
6
19
19
1
13
22
5
17
11
10
24
23

Артикул

Название

Примечание

Количество

1

87517342

TEE

1шт.

2

201-116

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

2шт.

3

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

2шт.

4

201-108

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

2шт.

5

201-922

BHD LOCK NUT,Blkhd, 1 11/16-12

2шт.

6

201-908

BHD LOCK NUT,Blkhd, 1 7/16"-12

2шт.

7

201-919

BHD LOCK NUT,1" - 14

2шт.

8

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

9

201-144

REDUCER,1 3/16"-12 Male x 1 11/16"-12 Fem, ORFS

1шт.

10

203-906

TUBE NUT,1 11/16"-12 ORFS

1шт.

11

87599706

HOSE ASSY.

Compactor Valve Return Jump

1шт.

12

87599707

HOSE ASSY.

Compactor Valve PSR Jump

1шт.

13

87522778

HOSE ASSY.

Auger Pressure Jump

1шт.

14

87599708

HOSE ASSY.

Compactor Valve Sense Jump

1шт.

15

87522772

HYD TUBE,1.25" OD

Compactor Valve Return Rear

1шт.

16

87522773

HYD TUBE,1" OD

Compactor Valve Pressure Rear

1шт.

17

87522774

HYD TUBE,0.625" OD

Auger Pressure Rear

1шт.

18

87522775

HYD TUBE,0.25" OD

Compactor Valve Sense Rear

1шт.

19

87000158

CLAMP

3шт.

20

87000159

CLAMP

3шт.

21

1347127C1

PLATE

3шт.

22

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

3шт.

23

163489C1

STRIP

3шт.

24

87533983

UNION

1шт.

Выбрано товаров: 24
