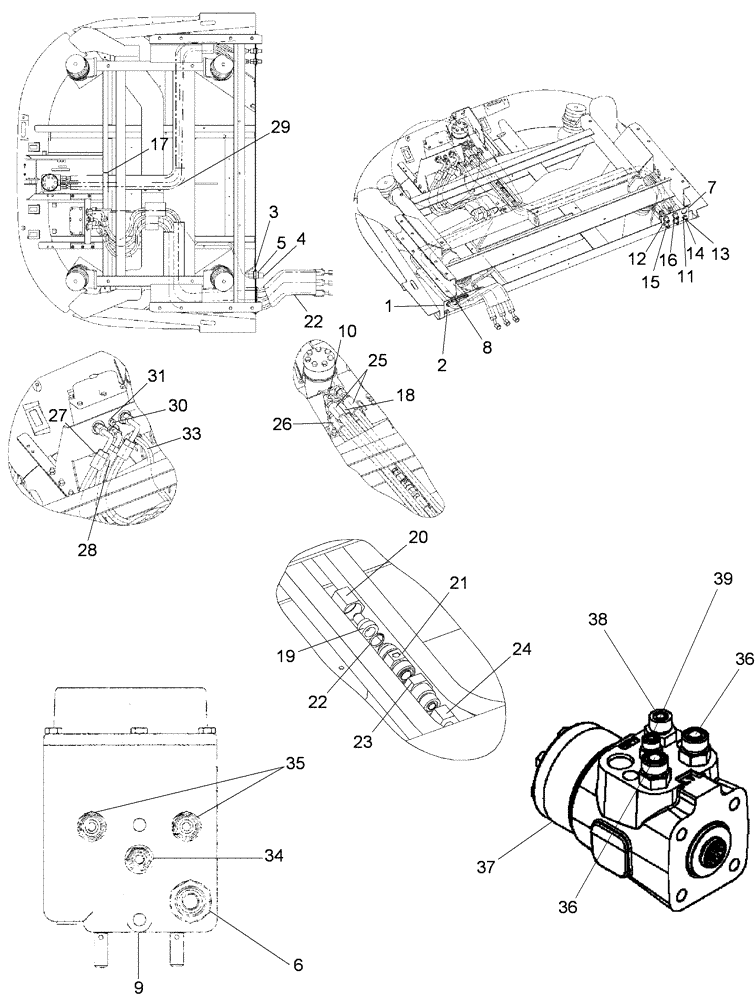

Запчасти Case IH 635 (35.910.03[02]) - HYDRAULIC STEERING, CAB (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case IH 635 - (35.910.03[02]) - HYDRAULIC STEERING, CAB (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/caseih/928780.png)
№
Артикул
Название
Примечание
Количество
1
221959A2
LARGE PLATE
PLATE, LARGE Bulkhead
1шт.
2
905-10025
BOLT,Hex Flg, M10 x 25mm
2шт.
3
825-51410
FLANGE NUT,M10, Flg Ser
2шт.
4
201-123
HYD CONNECTOR,1"-14, Blkhd, ORFS
1шт.
5
201-919
BHD LOCK NUT,1" - 14
1шт.
6
201-131
HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB
1шт.
7
184359A2
LARGE PLATE
PLATE, LARGE Bulkhead
1шт.
8
222038A1
GROMMET
1шт.
9
137449A2
BRAKE VALVE
1шт.
10
201-106
HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB
1шт.
11
493-41059
LOCK WASHER,Ext Tooth, 9/16"
2шт.
12
493-41078
LOCK WASHER,Ext Tooth, 3/4"
8шт.
13
201-108
HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS
1шт.
14
218-1254
LOCK NUT,Blkhd, 9/16"-18
1шт.
15
201-120
HYD CONNECTOR,11/16"-16, Blkhd, ORFS
4шт.
16
201-909
BHD LOCK NUT,Blkhd, 11/16"-16
4шт.
17
324826A1
GROMMET
1шт.
18
187644A1
HOSE
Sense Short Steering Under Cab
1шт.
19
218-791
REDUCER,37 Degree, 1/2" x 1/4" Tube
1шт.
20
218-344
TUBE NUT,37 Degree, 3/4"-16, Type B
1шт.
21
1980237C2
CHECK VALVE
1шт.
22
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
23
201-138
REDUCER,11/16"-18 Male x 13/16"-16 Fem, ORFS
1шт.
24
187646A1
HOSE
Sense Long Steering Under Cab
1шт.
25
187655A1
HOSE
Supply Steering Under Cab
2шт.
26
187656A1
HOSE
Return Steering Under Cab
2шт.
27
221127A2
HOSE
Right Hand Brake Under Cab
2шт.
28
221128A2
HOSE
Supply Brake Under Cab
1шт.
29
191134A1
HOSE,60.3mm ID x 956mm L
1шт.
30
413-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
2шт.
31
425-166
NUT,3/8"-16, G5, Hvy
2шт.
32
1989500C1
SLEEVE
1шт.
33
407682A1
TUBE
Brake Valve Return
1шт.
34
197070A1
VALVE, CHECK
1шт.
35
201-126
HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB
2шт.
36
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
2шт.
37
387550A2
STEERING VALVE
Steering
1шт.
38
175170A1
ADAPTER
1шт.
39
201-100
HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB
1шт.
Выбрано товаров: 39
