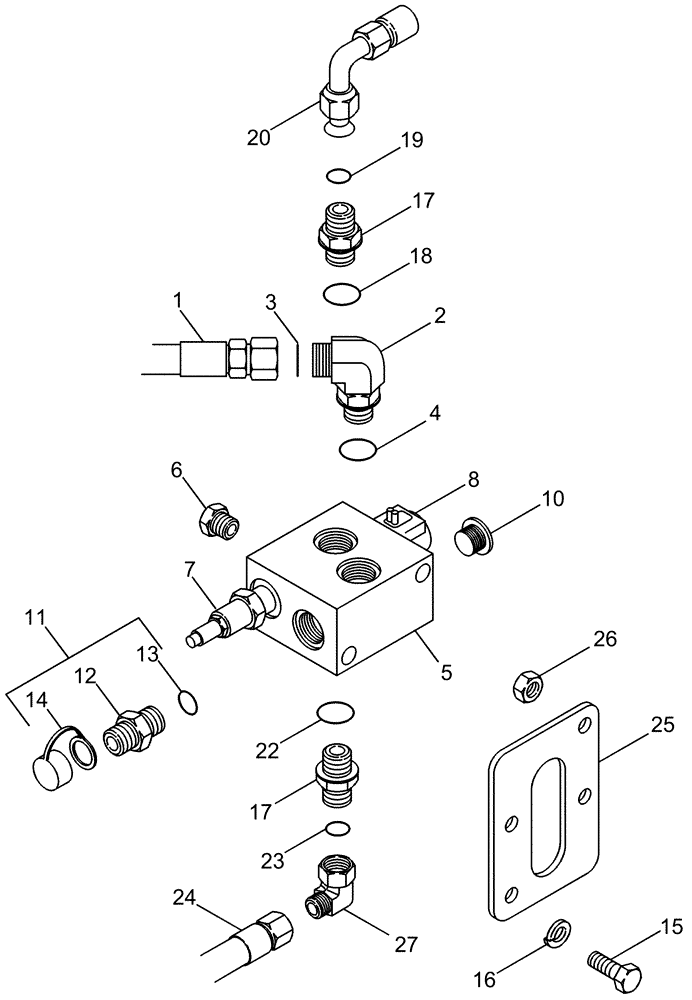

Запчасти Case IH 635 (35.910.02) - AUGER VALVE TO WATER SADDLE HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

197726A1

HOSE

740 mm (29-1/8"), Pump to Auger Control Valve Inlet

1шт.

2

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 3, 4

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

87330624

VALVE

Inc. 6 - 8

1шт.

6

237125A1

ELEMENT,7/8" - 14

Directional, Order 237126A1

1шт.

7

87330625

VALVE,3/4" - 16

Relief, 2250 psi, Inc. 28

1шт.

8

87390378

VALVE

Solenoid Cartridge with Coil, Inc. 9

1шт.

9

87339112

HYDRAULIC VALVE

(Not Shown)

1шт.

10

9625178

PLUG,9/16" - 18 ORB

1шт.

11

1541849C1

COUPLING

Diagnostic, Inc. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

COUPLING

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

H434163

DUST CAP

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 18, 10

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

87557467

HOSE ASSY.

985 mm (38-3/4"), Return

1шт.

24

NSS

NOT SOLD SEPARAT

TUBE, 6660 mm (262-3/16") Auger Control Valve to Bulkhead at Water Saddle

1шт.

25

87349278

PLATE

1шт.

26

425-106

NUT,3/8"-16, Cl 5

2шт.

27

201-361

ELBOW,90 Degree Elbow, 1" - 14 Male JIC x 1" - 14 Female JIC

1шт.

28

1542831C1

SEAL KIT

(Not Shown)

1шт.
