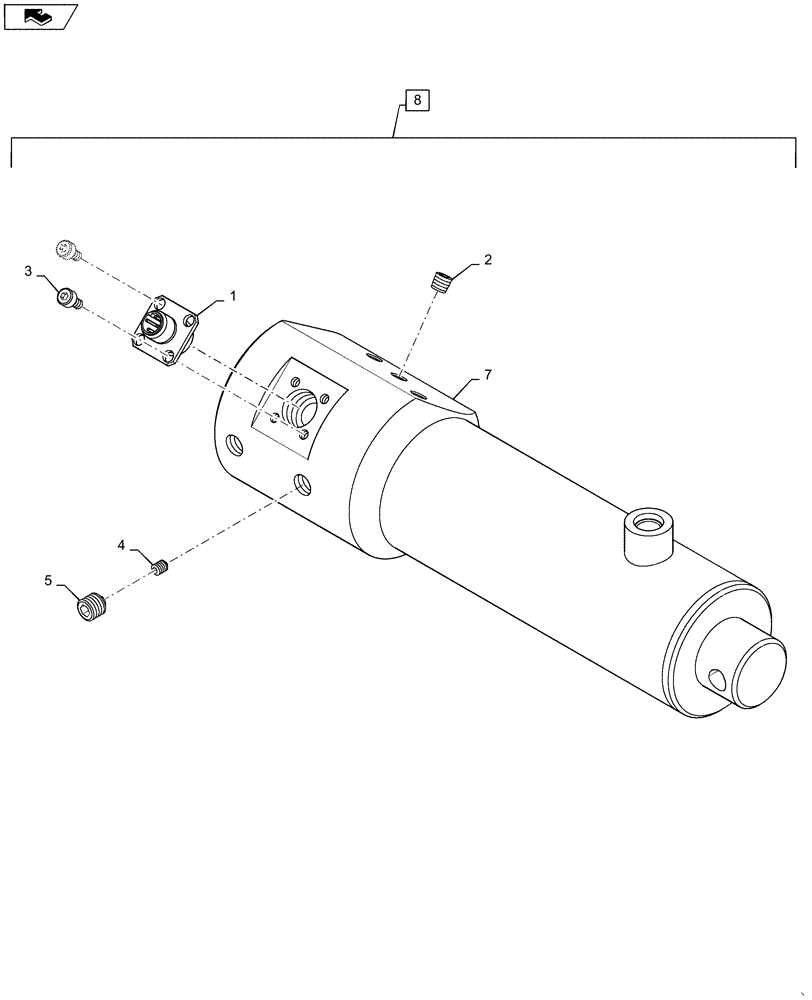

Запчасти Case IH 635 (35.550.04) - HYDRAULIC CYLINDER, TAILGATE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84546652

SENSOR

Position w/ Magnet

1шт.

2

84546655

PLUG

Orifice 0.030"

1шт.

3

14418924

SCREW,M4 x 8mm, Cl 8.8, Full Thd

4шт.

4

86512756

SET SCREW,Hex Skt, #10 - 24 x 1/4"

1шт.

5

80425

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

1шт.

6

84546658

SERVICE KIT

Seal Repair, 2" x 1.25", Not Illustrated

1шт.

7

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 8

1шт.

8

84494480

HYDRAULIC CYLINDER,31.8mm Rod, 100mm Stroke

Tailgate, Incl 1 - 7

1шт.
