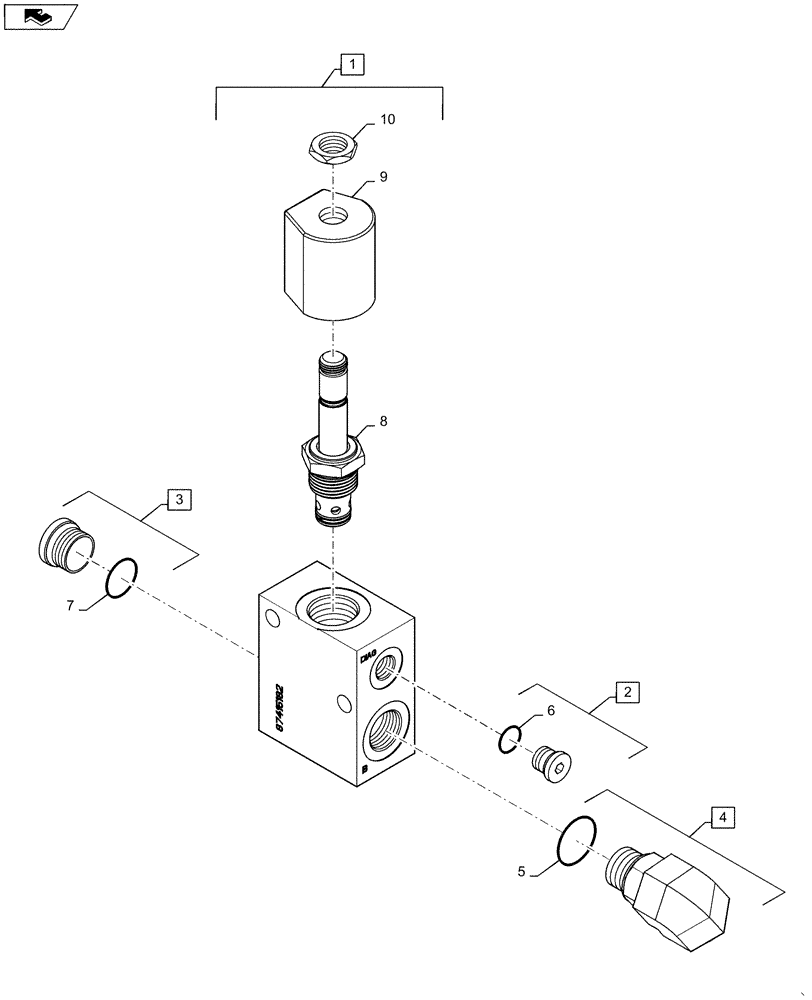

Запчасти Case IH 635 (35.550.03) - HYDRAULIC LOAD CHECK VALVE, TAILGATE (35) - HYDRAULIC SYSTEMS

1

87415182

VALVE

Load Holding, Incl 8 - 10

1шт.

2

278548

PLUG,Hex, 7/16"-20 ORB

Incl 6

1шт.

3

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Incl 7

1шт.

4

84390792

90 ELBOW

Incl 5

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

80128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

87436627

VALVE

Body

1шт.

9

1340843C1

SOLENOID,12V

1шт.

10

195683A1

JAM NUT,1/2"-20

1шт.
