(35.550.02) - HYDRAULIC CYLINDER, TAILGATE

Запчасти Case IH 635 (35.550.02) - HYDRAULIC CYLINDER, TAILGATE (35) - HYDRAULIC SYSTEMS

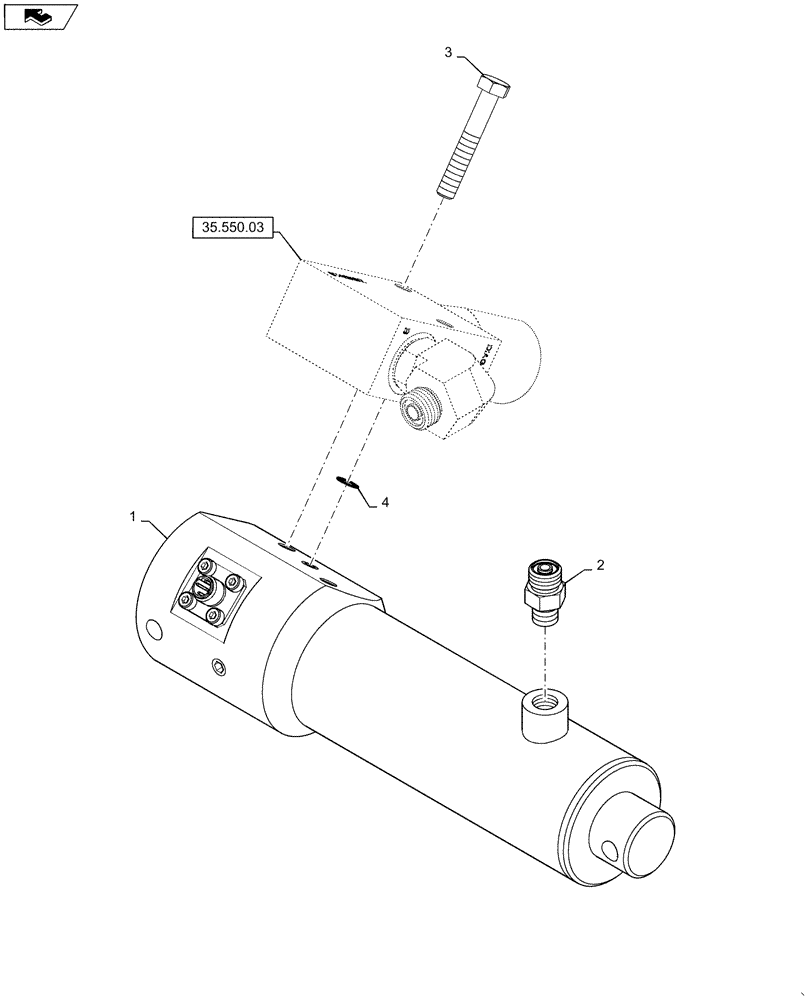

Схема запчастей Case IH 635 - (35.550.02) - HYDRAULIC CYLINDER, TAILGATE (35) - HYDRAULIC SYSTEMS
4
2
3
home
35.550.03
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84494480

HYDRAULIC CYLINDER,31.8mm Rod, 100mm Stroke

Tailgate

1шт.

2

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1шт.

3

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

2шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
