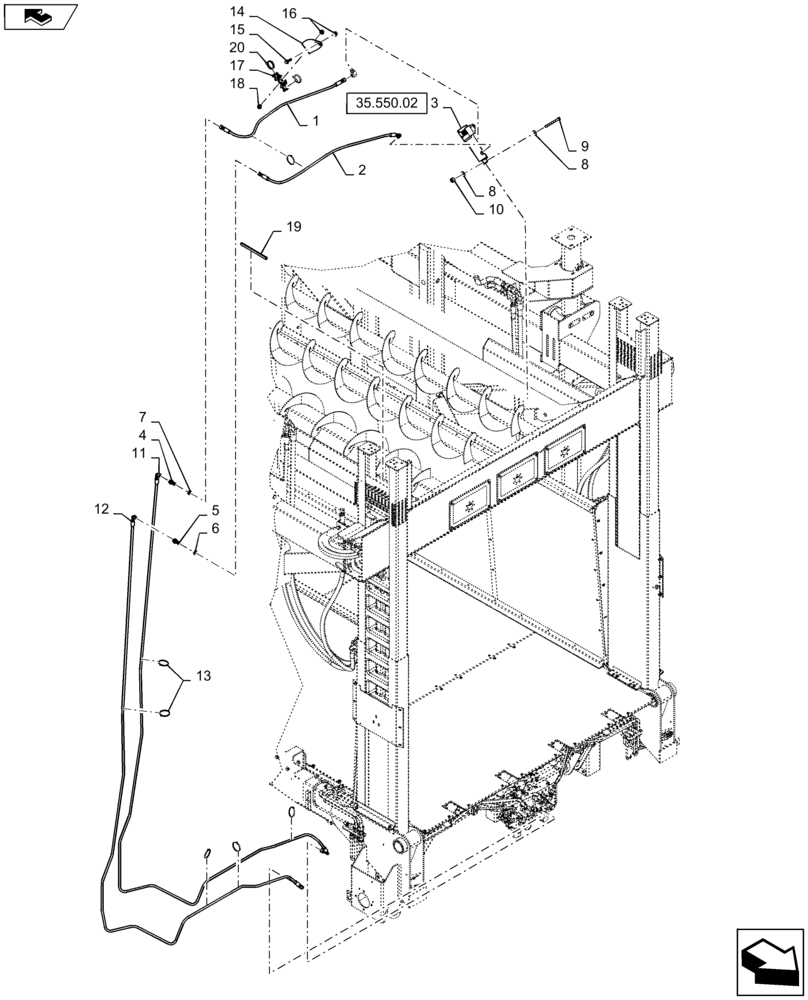

Запчасти Case IH 635 (35.550.01) - HYDRAULIC AUTO REAR TAILGATE (35) - HYDRAULIC SYSTEMS

1

84548025

HYDRAULIC HOSE

Cylinder to Bulkhead, Close

1шт.

2

84548314

HYDRAULIC HOSE

Cylinder to Bulkhead, Open

1шт.

3

306132C1

CABLE TIE,14.5" L

2шт.

4

201-108

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

1шт.

5

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

1шт.

6

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

7

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

8

86625240

WASHER,0.38" ID x 1.12" OD x 0.07" Thk

4шт.

9

86578526

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 8

2шт.

10

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

2шт.

11

84548471

HYDRAULIC HOSE

Valve to Bulkhead, Close

1шт.

12

84550248

HYDRAULIC HOSE

Valve to Bulkhead, Open

1шт.

13

289862C1

CABLE TIE,3/16" x 7"

21шт.

14

47391665

BRACKET

1шт.

15

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

17

84360209

BASE

1шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

19

123565A1

SEAL ASSY.

1шт.
