Запчасти Case IH 635 (35.304.01) - HYDRUALIC AUXILIARY PUMP (35) - HYDRAULIC SYSTEMS

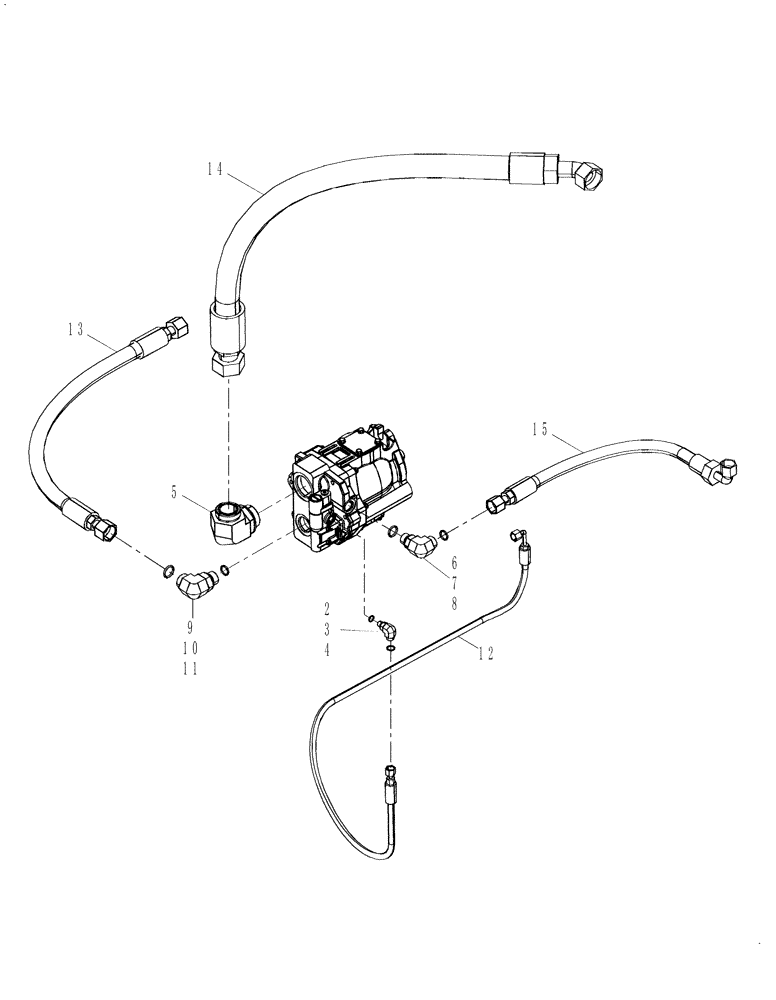

Схема запчастей Case IH 635 - (35.304.01) - HYDRUALIC AUXILIARY PUMP (35) - HYDRAULIC SYSTEMS
10
6
4
5
7
2
12
3
14
11
13
8
9
15

Артикул

Название

Примечание

Количество

1

87423526

HYDRAULIC PUMP,41 CC

Auxiliary PFC, 2011

1шт.

See Figure 29.218.03(01) For Service Parts

1шт.

1

84495692

HYDRAULIC PUMP,46 CC

Aux Piston Pump, 2012

1шт.

See Figure 29.218.03(02) For Service Parts

1шт.

1

47572781

HYDRAULIC PUMP,45 CC

Piston (Replaces 84495692), 2013

1шт.

See Figure 29.218.03(03) For Service Parts

1шт.

2

87681199

90 ELBOW

Elbow

1шт.

3

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

201-310

ELBOW,90 Degree Elbow, 2" - 12 Male ORFS x 1-7/8" - 12 Male ORB

1шт.

6

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

7

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

1шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

12

87436845

HOSE ASSY.

Auxiliary Pump Sense

1шт.

13

87522814

HOSE ASSY.

Auxiliary Pump Pressure

1шт.

14

84194151

HOSE ASSY.

Auxiliary Pump Suction

1шт.

15

84194152

HOSE ASSY.

Auxiliary Pump Drain

1шт.

16

329-288

FLANGE NUT,Flg, 1/2"-13, G8

2шт.

17

1263234C1

SHAFT

Drive (Not Shown)

1шт.

18

409970

COUPLING

Charge Pump

1шт.

Выбрано товаров: 23
