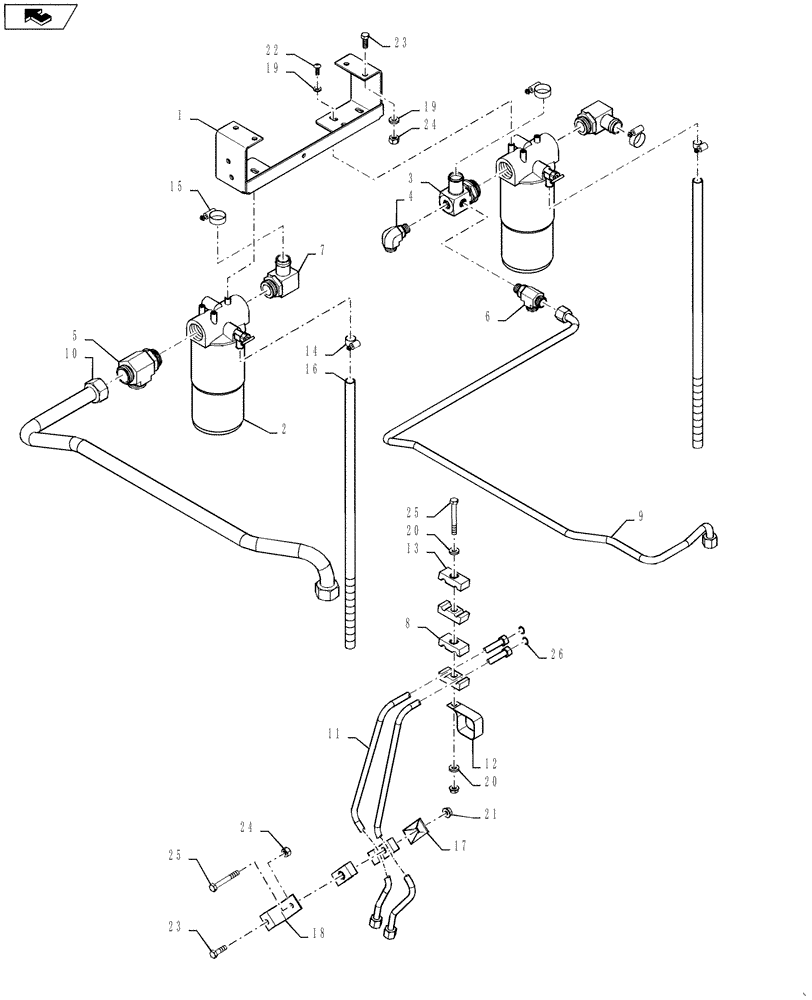

Запчасти Case IH 635 (35.300.04[2]) - HYDRAULIC FILTERS (35) - HYDRAULIC SYSTEMS

1

300278A1

BRACKET

1шт.

2

87784C92

HYDRAULIC OIL FILTER

2шт.

3

198617A2

ELBOW

1шт.

4

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

5

201-414

TEE,1 11/16"-12 x 1 5/8"-12 Run, ORFS

1шт.

6

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

1шт.

7

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

2шт.

8

1546025C1

CLAMP

8шт.

9

84161928

TUBE ASSY.

1шт.

10

87314778

HYD TUBE,1.25" OD

1шт.

11

87516519

HYD TUBE,0.5" OD

1шт.

12

1301387C2

CLIP

1шт.

13

1546024C1

CLAMP

1шт.

14

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

15

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

3шт.

16

129096A1

HOSE

2шт.

17

1347127C1

PLATE

8шт.

18

196517C1

SUPPORT TUBE

1шт.

19

80680

LOCK WASHER,3/8 0.381 CST ZND

10шт.

20

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

6шт.

21

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

3шт.

22

80088703

SCREW

6шт.

23

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

24

425-106

NUT,3/8"-16, Cl 5

5шт.

25

86521605

FLANGE NUT,5/16"-18, Cl 5

8шт.

26

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
