Запчасти Case IH 635 (35.300.04[01]) - HYDRAULIC FILTERS (35) - HYDRAULIC SYSTEMS

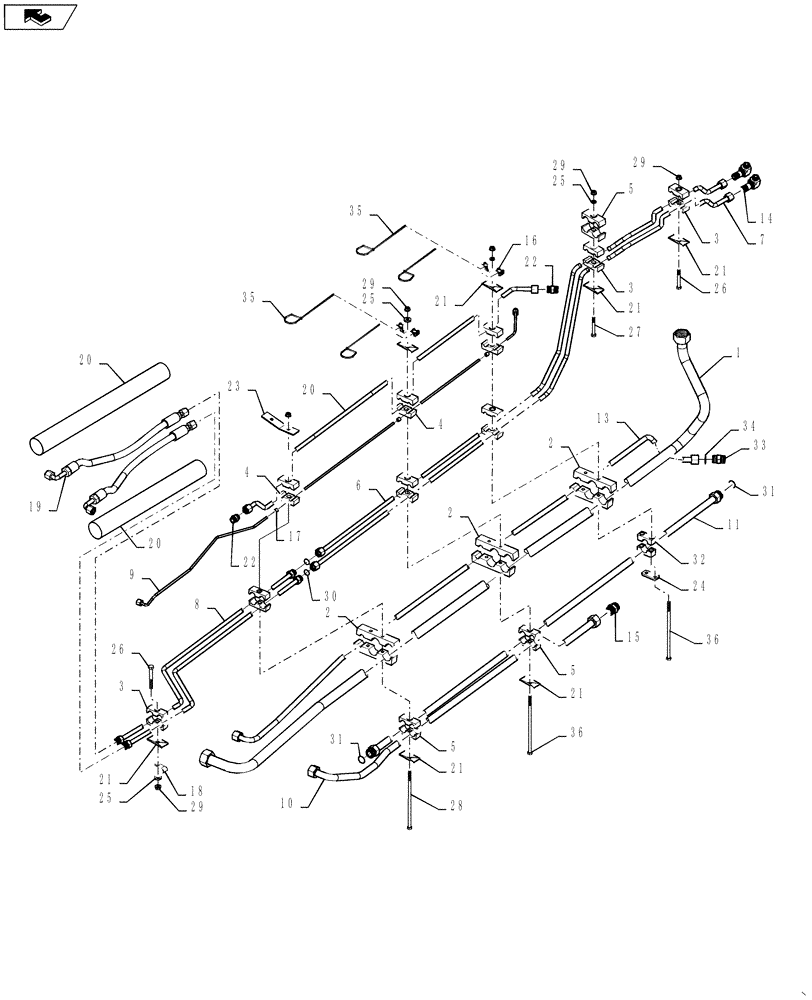

Схема запчастей Case IH 635 - (35.300.04[01]) - HYDRAULIC FILTERS (35) - HYDRAULIC SYSTEMS
21
14
36
22
home
34
3
23
35
5
20
21
11
21
32
26
18
25
5
29
7
4
31
9
25
17
5
27
20
26
2
29
1
13
21
36
22
10
2
20
15
28
19
24
2
35
25
21
29
33
6
8
29
30
31
3
4
3
21
16

Артикул

Название

Примечание

Количество

1

84161930

TUBE ASSY.

Hydraulic Filter

1шт.

2

84257270

CLAMP

With Drain Valve

3шт.

3

1546025C1

CLAMP

Special Barb

8шт.

4

87105732

CLAMP

3шт.

5

1546028C1

CLAMP,25.4mm ID x 82mm L

3шт.

6

429562A1

TUBE

1шт.

7

429563A1

TUBE

Stem

1шт.

8

429572A1

TUBE

Return Frame Front

2шт.

9

84265421

HYD TUBE

1шт.

10

84388583

RIGID TUBE

1шт.

11

84388606

RIGID TUBE

1шт.

12

84265422

HYD TUBE

1шт.

13

84257271

HYD TUBE

Steering Left Hand Middle

1шт.

14

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Steering Right Hand Middle

2шт.

15

87632744

FITTING

Rear Steering

1шт.

16

84360209

BASE

Reg Return

2шт.

17

163489C1

STRIP

Left Side Frame Front

3шт.

18

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

TUBE,Pump Press Frame Front

1шт.

19

87396998

HOSE ASSY.

TUBE,Left Hand Case Drain

2шт.

20

S120426

TUBE

Ras Frame Front

2шт.

21

1347127C1

PLATE

Auger Front Frame

8шт.

22

201-152

HYD CONNECTOR,13/16"-16 ORFS

Filter Return

2шт.

23

84265408

MOUNTING PLATE

1шт.

24

2781781

PLATE

1шт.

25

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

6шт.

26

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

Coated Hose

3шт.

27

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

Hydraulic Tube

2шт.

28

9849638

BOLT,Hex, 5/16" - 18 x 8", Gr 5

Straight Unio

3шт.

29

86521605

FLANGE NUT,5/16"-18, Cl 5

Tie

8шт.

30

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Rubber

4шт.

31

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

32

1768315

CLIP,28mm ID, 70mm L x 30.5mm W x 48mm Thk

1шт.

33

84431473

HYD CONNECTOR,1"-14 ORFS

1шт.

34

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plain Plastic

1шт.

35

BN570007

STRAP

Steering Cyclinder

4шт.

36

413-5144

BOLT,Hex, 5/16" - 18 x 9", Gr 5

Protective

2шт.

Выбрано товаров: 36
