Запчасти Case IH 635 (35.300.02) - HYDRAULIC RESERVOIR ASSEMBLY (35) - HYDRAULIC SYSTEMS

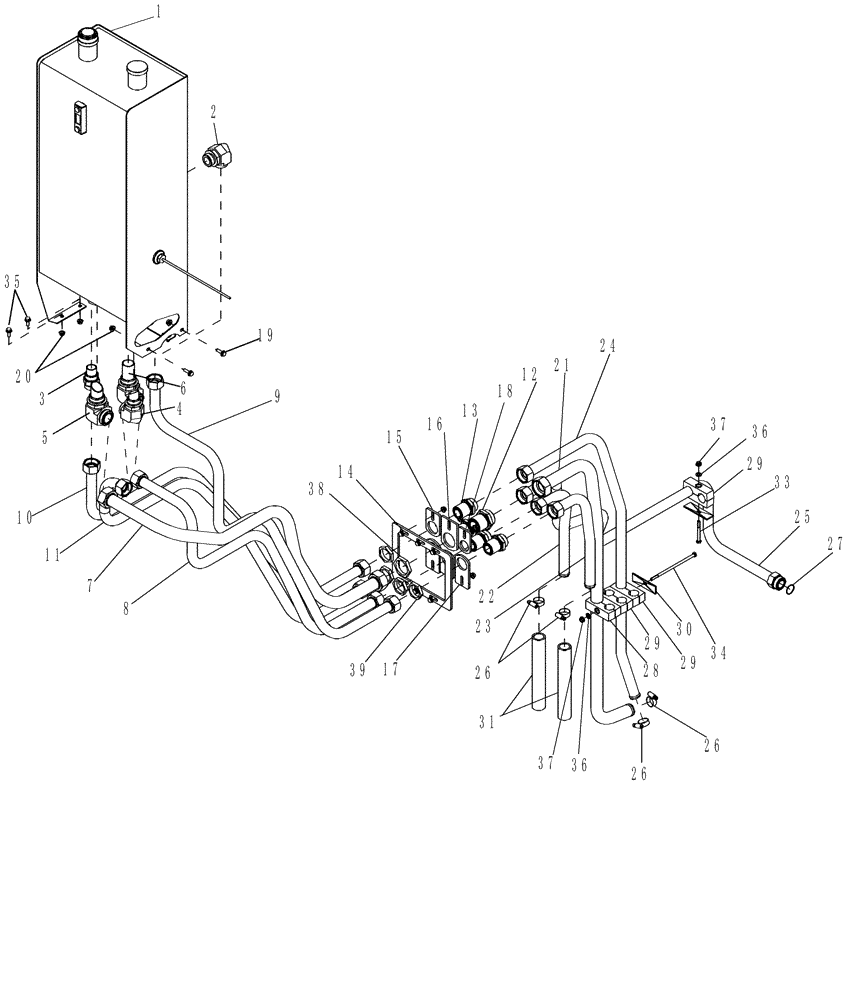

Схема запчастей Case IH 635 - (35.300.02) - HYDRAULIC RESERVOIR ASSEMBLY (35) - HYDRAULIC SYSTEMS
23
33
38
35
3
12
37
17
36
4
39
20
27
6
24
26
26
34
9
29
16
21
26
11
30
2
28
18
14
5
25
19
36
8
15
10
37
22
31
29
1
7
29
13

Артикул

Название

Примечание

Количество

1

87589425

TANK, HYDRAULIC OIL

Hydraulic

1шт.

2

84203896

FITTING

1шт.

3

400614A1

FITTING

Reservoir Elbow

1шт.

4

87448837

FITTING

Elbow, Reservoir

1шт.

5

87448838

FITTING

Hydraulic Elbow

1шт.

6

87448839

FITTING

Hydraulic

1шт.

7

87523757

HYD TUBE,32.004 mm ID x 1.5 mm OD x 729.65, 449.1 mm L

Reservoir to Packager Pump Outside

1шт.

8

87523760

HYD TUBE,1.25" OD

Reservoir to Charge Pump Outside

1шт.

9

87523761

HYD TUBE,1.25" OD

Reservoir Return Outside

1шт.

10

87693150

HYD TUBE,1.25" OD

Reservoir to Auger Pump Outside

1шт.

11

87693446

HYD TUBE,1.25" OD

Reservoir to Auxiliary Pump Outside

1шт.

12

87394248

UNION

Orfs Bulkhead 1.5

1шт.

13

87533983

UNION

4шт.

14

87498899

PLATE ASSY.

1шт.

15

87498900

PLATE ASSY.

2шт.

16

87498901

PLATE ASSY.

1шт.

17

87498902

PLATE ASSY.

2шт.

18

87498905

PLATE ASSY.

1шт.

19

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

18шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

21

87523764

HYD TUBE,1.5" OD

Reservoir to Packager Pump Inside

1шт.

22

87523765

HYD TUBE,1.25" OD

Reservoir to Charge Pump Inside

1шт.

23

87523768

HYD TUBE,1.25" OD

Reservoir Return Inside

1шт.

24

87523762

HYD TUBE,1.25" OD

Reservoir to Auger Pump Inside

1шт.

25

87523763

HYD TUBE,1.25" OD

Auxiliary Pump Suction Inside

1шт.

26

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

4шт.

27

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

28

87000157

CLAMP

1шт.

29

87000156

CLAMP

3шт.

30

1324469C1

PLATE

2шт.

31

47370978

HYDRAULIC HOSE

2шт.

32

122428A1

SWITCH

Fluid Level

1шт.

33

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

34

413-5120

BOLT,Hex, 5/16" - 18 x 7-1/2", Gr 5

1шт.

35

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

36

495-11034

WASHER,5/16", SAE

2шт.

37

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

38

87533994

BHD LOCK NUT

1шт.

39

201-922

BHD LOCK NUT,Blkhd, 1 11/16-12

4шт.

Выбрано товаров: 39
