Запчасти Case IH 635 (35.300.01[02]) - COOLER BYPASS MANIFOLD (35) - HYDRAULIC SYSTEMS

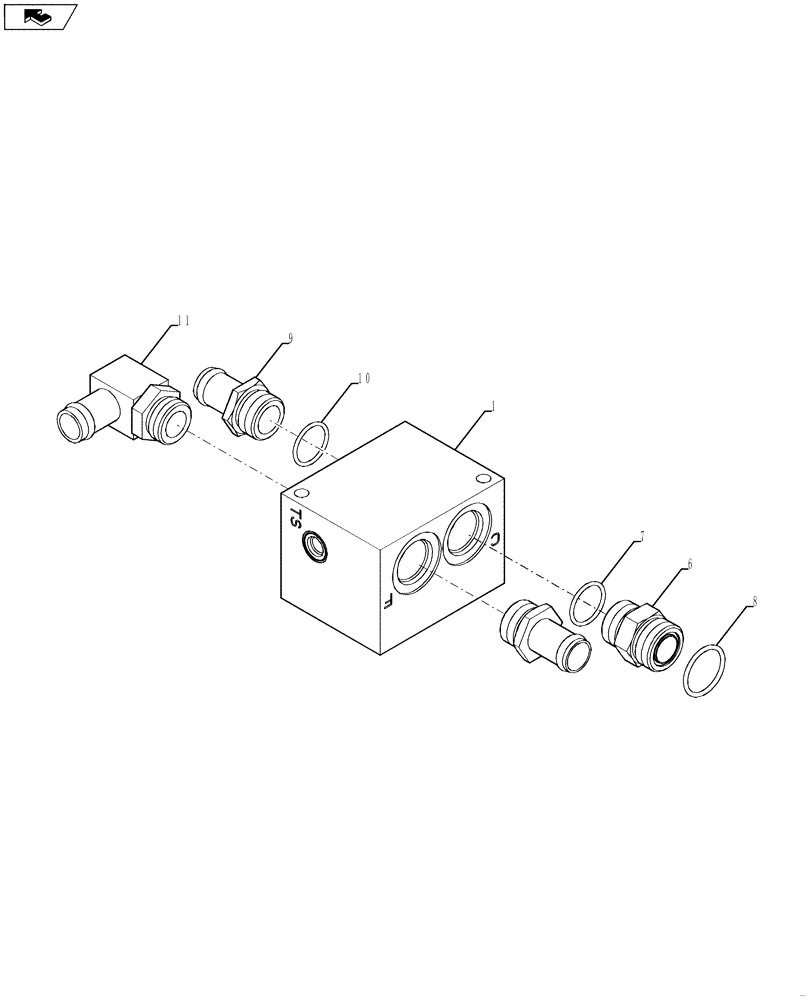

Схема запчастей Case IH 635 - (35.300.01[02]) - COOLER BYPASS MANIFOLD (35) - HYDRAULIC SYSTEMS
6
10
7
11
1
8
home
9

Артикул

Название

Примечание

Количество

1

84257274

MANIFOLD ASSY

Bypass Inc.2-5

1шт.

2

431867A1

VALVE, CHECK

Inc. 3 (Not Shown)

1шт.

3

431868A1

SEAL KIT

(Not Shown)

1шт.

4

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Inc 5 (Not Shown)

2шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(Not Shown)

2шт.

6

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 7-8

1шт.

7

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

9

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Inc. 10

2шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

2шт.

11

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

1шт.

Выбрано товаров: 11
