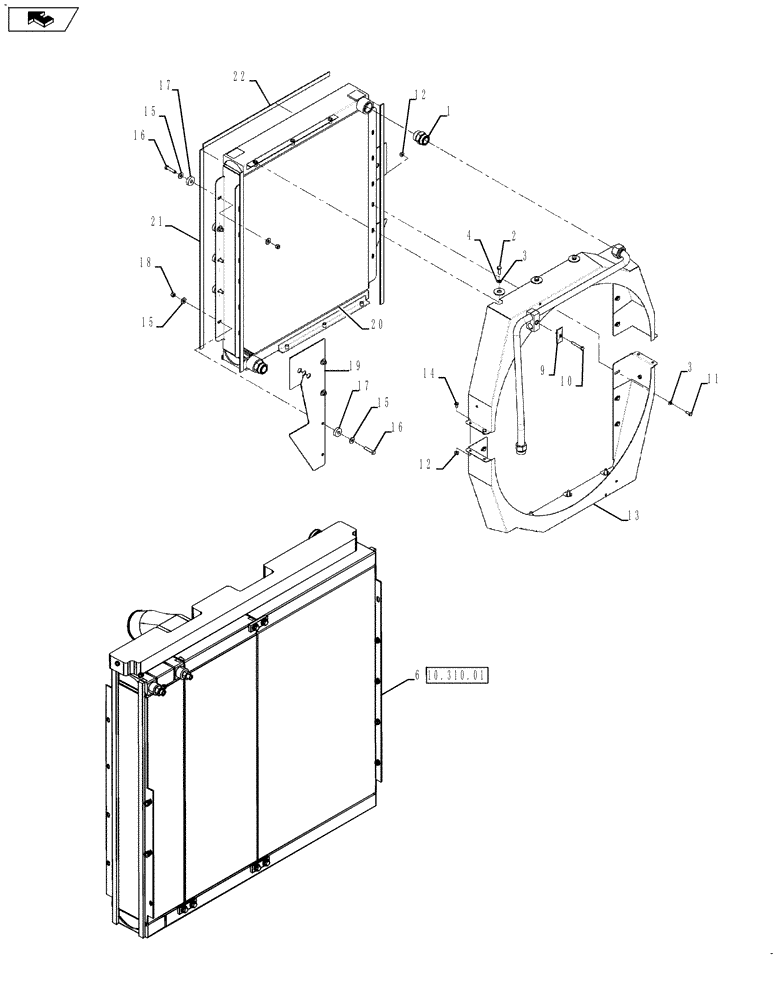

Запчасти Case IH 635 (35.300.01[01]) - OIL COOLER SYSTEM AND FAN SHROUD (35) - HYDRAULIC SYSTEMS

1

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

2шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

3

495-11034

WASHER,5/16", SAE

12шт.

4

495-81145

WASHER,13/32" x 1 3/4" x .120"

6шт.

5

84257791

TUBE

Hydraulic Assembly Cooler Out Upper

1шт.

6

NSS

NOT SOLD SEPARAT

Cooler Assembly Ref. 10.310.01

1шт.

9

1347127C1

PLATE

Hose Clamp

1шт.

10

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

1шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22шт.

13

84406476

SHROUD

Engine Fan, Upper

1шт.

13

84476069

SHROUD

Engine Fan, Lower

1шт.

14

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

15

495-21044

WASHER,3/8"

20шт.

16

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

10шт.

17

257973A1

SEALING WASHER,12.5mm ID x 36mm OD x 10mm Thk

Rubber

10шт.

18

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

10шт.

19

84255072

PROTECTION PLATE

Lower Cooler Shield

2шт.

20

84206127

HEAT-EXCHANGER

Oil Cooler

1шт.

21

370863A1

SEAL

Radiator To Chassis

4шт.

22

84256052

RUBBER SEAL,19mm W x 710mm L x 3mm Thk

Cooler To Chassis

2шт.
