Запчасти Case IH 635 (35.138.03) - VALVE, MODULE BUILDER CONTROL (35) - HYDRAULIC SYSTEMS

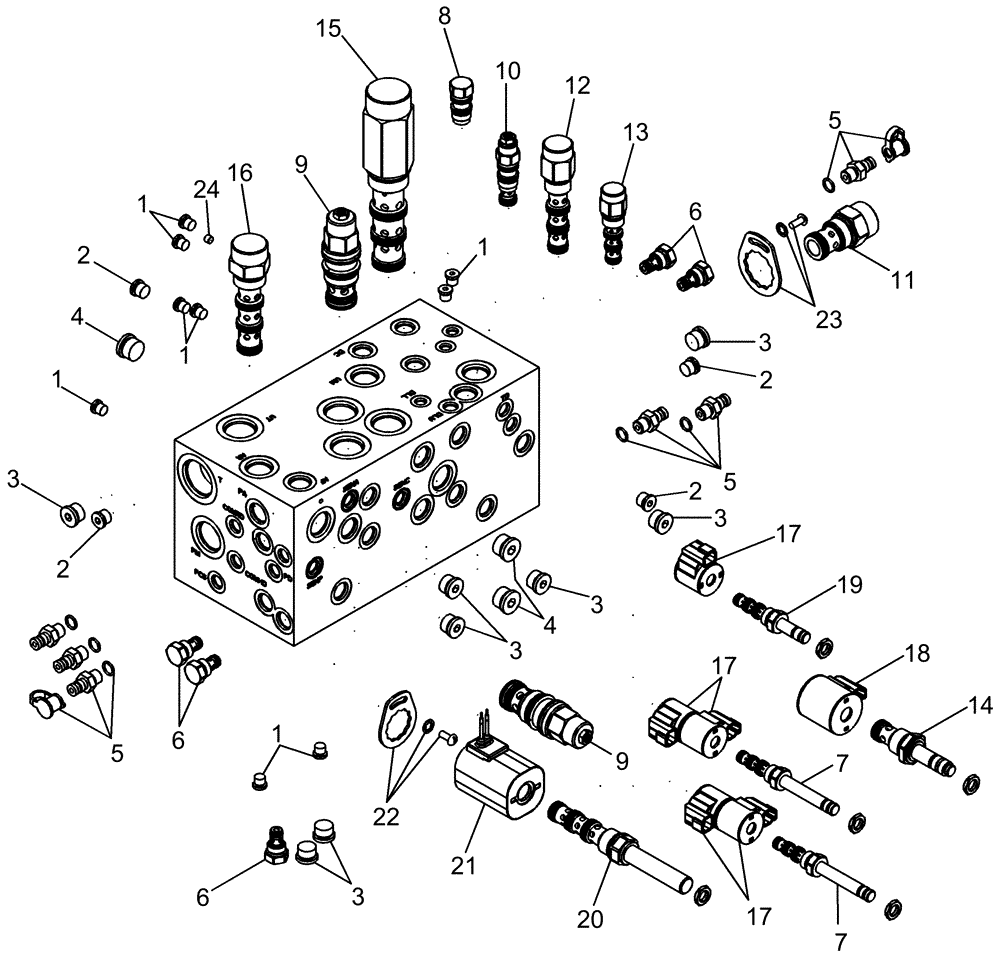

Схема запчастей Case IH 635 - (35.138.03) - VALVE, MODULE BUILDER CONTROL (35) - HYDRAULIC SYSTEMS
15
17
3
6
2
6
11
18
1
5
7
20
2
1
21
19
10
22
17
3
3
9
16
1
5
5
13
17
12
3
23
24
2
2
6
4
9
4
1
7
14
8
3
3
1

Артикул

Название

Примечание

Количество

87397981

VALVE

Inc. 1 - 24

1шт.

84524241

VALVE

Incl 1 - 24, Start Year: 04-JAN-12

1шт.

1

278548

PLUG,Hex, 7/16"-20 ORB

9шт.

2

9625178

PLUG,9/16" - 18 ORB

4шт.

3

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

8шт.

4

86625138

PLUG,7/18" - 14

3шт.

5

1541849C1

COUPLING

6шт.

6

120459A1

VALVE,3/4" - 16

Sense Check

5шт.

7

86556828

CARTRIDGE

4-Way, 3 Position

2шт.

8

87581186

PLUG

1шт.

9

87581188

HYDRAULIC VALVE

Counterbalance

2шт.

10

87581190

HYDRAULIC VALVE

Counterbalance

1шт.

11

87582516

HYDRAULIC VALVE

Flow Control, 10 GPM

1шт.

12

87582517

HYDRAULIC VALVE

3-Way, Pilot Operated

1шт.

13

87582518

HYDRAULIC VALVE

3-Way, Pilot Operated

1шт.

14

87582519

HYDRAULIC VALVE

2-Way, Proportional

1шт.

15

87582520

HYDRAULIC VALVE

3-Way, Pilot Operated

1шт.

16

87582522

HYDRAULIC VALVE

3-Way, Pilot Operated

1шт.

17

87582524

COIL

5шт.

18

87582525

COIL

1шт.

19

87582528

HYDRAULIC VALVE

4-Way, 2 Position

1шт.

19

84421439

SOLENOID

, Start Year: 04-JAN-12

1шт.

20

87582529

HYDRAULIC VALVE

4-Way, 2 Position

1шт.

21

87582530

HYDRAULIC VALVE

1шт.

22

87582531

SEAL

Valve Lockdown

1шт.

23

87582532

SEAL

Valve Lockdown

1шт.

24

87582543

PLUG

1шт.

25

87581191

SEAL KIT

Repair for Ref. 8 (Not Shown)

1шт.

26

87581189

SEAL KIT

Repair for Ref. 9 (Not Shown)

1шт.

27

87581191

SEAL KIT

Repair for Ref. 10 (Not Shown)

1шт.

28

87365420

SEAL KIT

Repair for Ref. 11 (Not Shown)

1шт.

29

388744A1

SEAL KIT

Seal Repair for Ref. 12 (Not Shown)

1шт.

30

124639A1

SEAL KIT

Repair for Ref. 13 (Not Shown)

1шт.

31

431868A1

SEAL KIT

Repair for Ref. 14 (Not Shown)

1шт.

32

87582521

SEAL KIT

Repair for Ref. 15 (Not Shown)

1шт.

33

87582523

SEAL KIT

Repair for Ref. 16 (Not Shown)

1шт.

34

86556830

SEAL KIT

Repair for Ref. 7 and 19 (Not Shown)

1шт.

35

388744A1

SEAL KIT

Seal Repair for Ref. 20 (Not Shown)

1шт.

36

195683A1

JAM NUT,1/2"-20

5шт.

Выбрано товаров: 39
