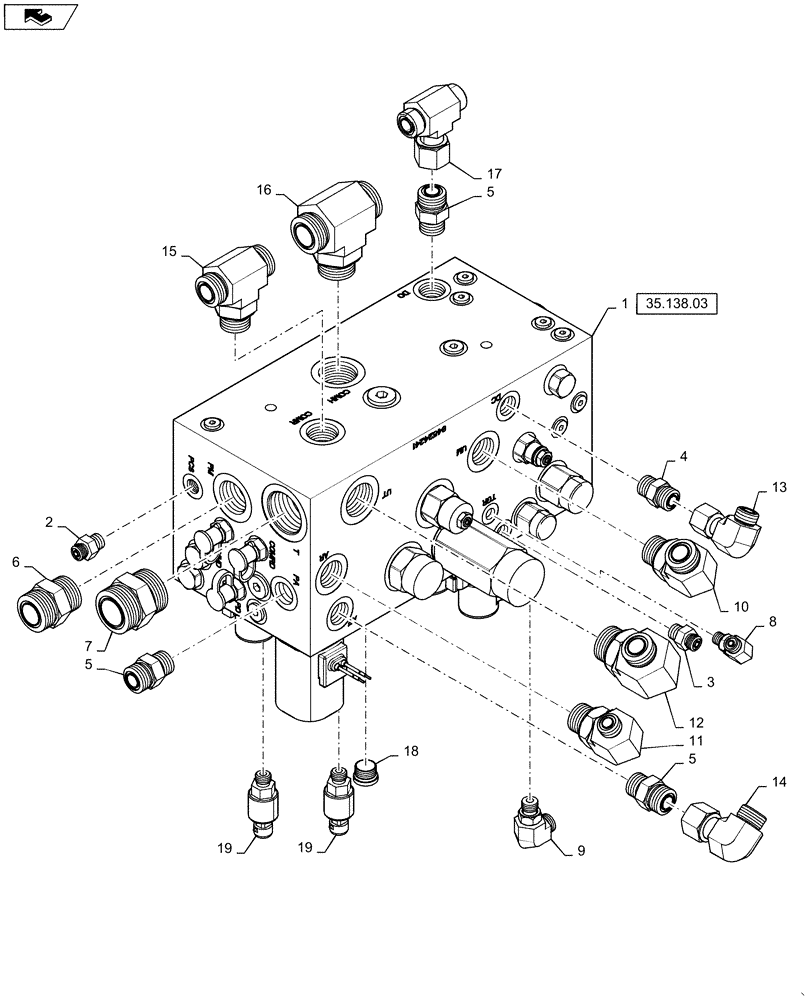

Запчасти Case IH 635 (35.138.02[02]) - VALVE WITH FITTINGS, MODULE BUILDER CONTROL, MDL YEAR 2012 (35) - HYDRAULIC SYSTEMS

1

84524241

VALVE

Hyd Module Chamber Control

1шт.

2

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

1шт.

3

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

4

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

5

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

3шт.

6

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

1шт.

7

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

8

87681199

90 ELBOW

1шт.

9

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

10

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

1шт.

11

87591918

90 ELBOW

1шт.

12

87326965

90 ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

1шт.

13

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

14

201-361

ELBOW,90 Degree Elbow, 1" - 14 Male JIC x 1" - 14 Female JIC

1шт.

15

84312236

BRANCH TEE

1шт.

16

9628061

TEE

1шт.

17

87564726

TEE,1-14 ORFS x 1-1/8' ORFS

1шт.

18

86611704

PLUG,Hex, M14 x 1.5 ORB

1шт.

19

86523197

SENSOR

2шт.
