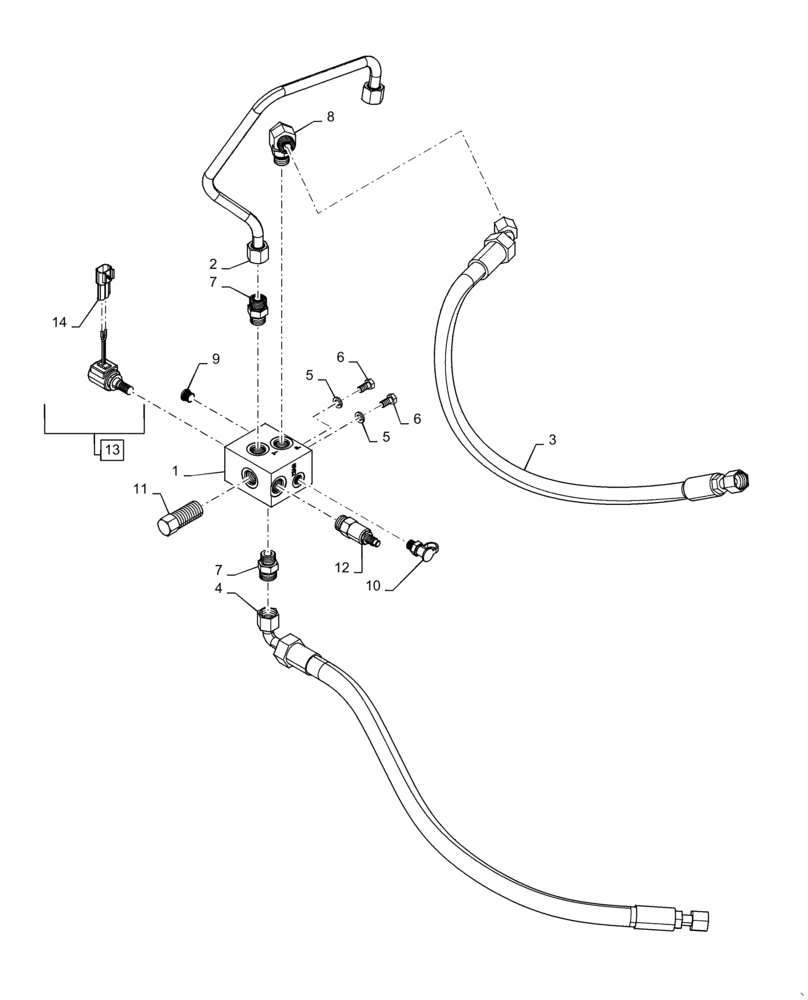

Запчасти Case IH 635 (35.138.01) - VALVE, AUGER CONTROL (35) - HYDRAULIC SYSTEMS

1

87330624

VALVE

Auger, 2250 PSI, Incl 11 - 13

1шт.

2

84479369

TUBE

Hydraulic Assy, Augers Return

1шт.

3

197726A1

HOSE

Assy, Pump To Valve

1шт.

4

87557467

HOSE ASSY.

Hydraulic, Auger Pressure

1шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

2шт.

8

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

9

1541849C1

COUPLING

Diagnostic

1шт.

10

9625178

PLUG,9/16" - 18 ORB

1шт.

11

237125A1

ELEMENT,7/8" - 14

Valve

1шт.

12

87330625

VALVE,3/4" - 16

Relief, 2250 psi

1шт.

13

87390378

VALVE

Incl 14

1шт.

14

87339112

HYDRAULIC VALVE

1шт.

15

1542831C1

SEAL KIT

(Not Shown)

1шт.
