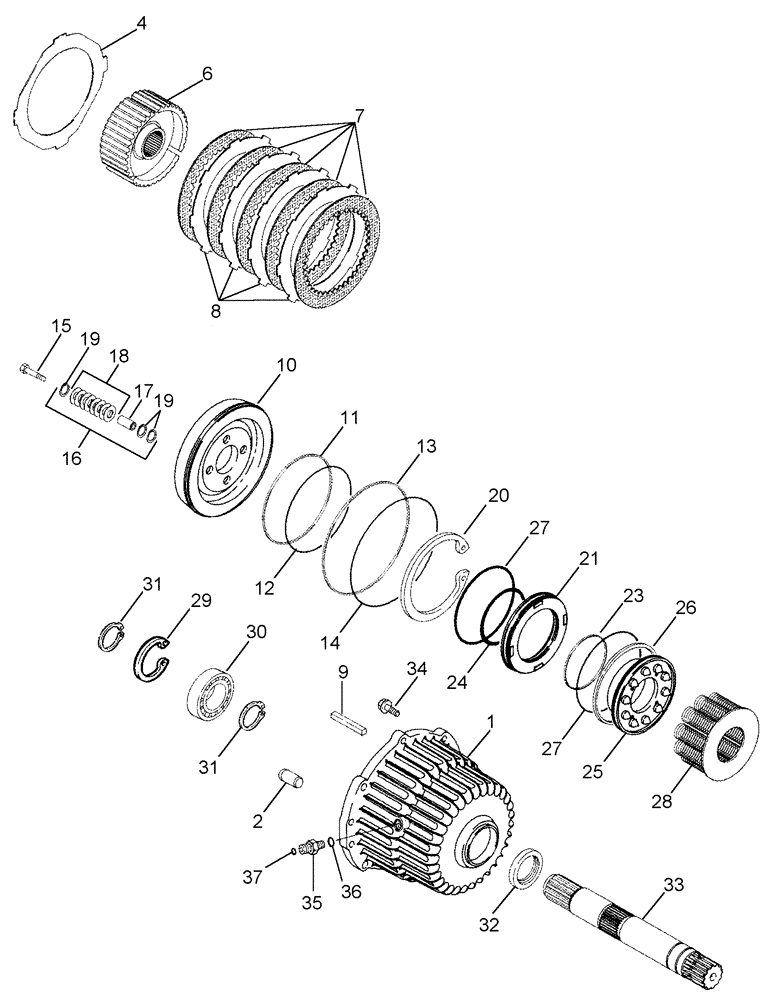

Запчасти Case IH 635 (33.202.02) - MASTER BRAKES (33) - BRAKES & CONTROLS
№
Артикул
Название
Примечание
Количество
236388A1
BRAKE ASSY.
Master, Inc. 1 - 37
2шт.
236388A1R
REMAN-BRAKE ASSY.
REMAN-BRAKE ASSY REMAN - Wet Brakes
2шт.
236388A1R
REMAN-BRAKE ASSY.
Return Number
2шт.
1
1997395C1
HOUSING
1шт.
2
837-16030
DOWEL,16mm OD x 30mm L
2шт.
4
NSS
NOT SOLD SEPARAT
SHIM, 0.5 mm, Order 221598A1
1шт.
4
NSS
NOT SOLD SEPARAT
SHIM, 1.062 mm, Order 221598A1
2шт.
6
1997394C1
HUB
1шт.
7
1997959C1
BRAKE DISC
DISC, BRAKE Friction
12шт.
8
1285974C1
BRAKE PLATE
Separator
13шт.
9
NSS
NOT SOLD SEPARAT
SPACER, Order 221598A1
8шт.
10
1997398C1
PISTON
1шт.
11
1997617C4
SEAL,179.2mm ID x 183mm OD x 3.3mm Thk
1шт.
12
238-7168
O-RING,0.103" Thk x 7.237" ID, -168, Cl 7, 75 Duro
1шт.
13
1997616C4
SEAL,227.1mm ID x 231mm OD x 3.3mm Thk
1шт.
14
238-7174
O-RING,0.103" Thk x 8.737" ID, -174, Cl 7, 75 Duro
1шт.
15
828-8070
BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9
4шт.
16
1997900C1
SPRING
Inc. 17 - 19
4шт.
17
1997899C1
SPACER
1шт.
18
1997912C1
BELLEVILLE WASHER
8шт.
19
100-1462
SNAP RING,#62, Ext
3шт.
20
102-22625
SNAP RING,#625, 6.474", Int, Spiral
1шт.
21
1997399C1
PISTON
1шт.
23
1997619C4
RING,108.2mm ID x 112mm OD x 3.3mm Thk
1шт.
24
238-7157
O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro
1шт.
25
1997400C1
PISTON
1шт.
26
1997618C4
SEAL,151.1mm ID x 155mm OD x 3.3mm Thk
1шт.
27
238-7162
O-RING,0.103" Thk x 5.737" ID, -162, Cl 7, 75 Duro
2шт.
28
1997999C2
SPRING
1шт.
29
101-21393
SNAP RING,#393, 4.234", Int
1шт.
30
A21266
BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"
1шт.
31
358059R1
SNAP RING
2шт.
32
184072C1
OIL SEAL,55.88mm ID x 76.2mm OD x 9.5mm Thk
1шт.
33
236378A1
SHAFT
1шт.
34
845-8020
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
4шт.
35
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl 36, 37
2шт.
37
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
36
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
221598A1
SHIM KIT
1шт.
189562A1
PLUG
(Not Shown)
2шт.
