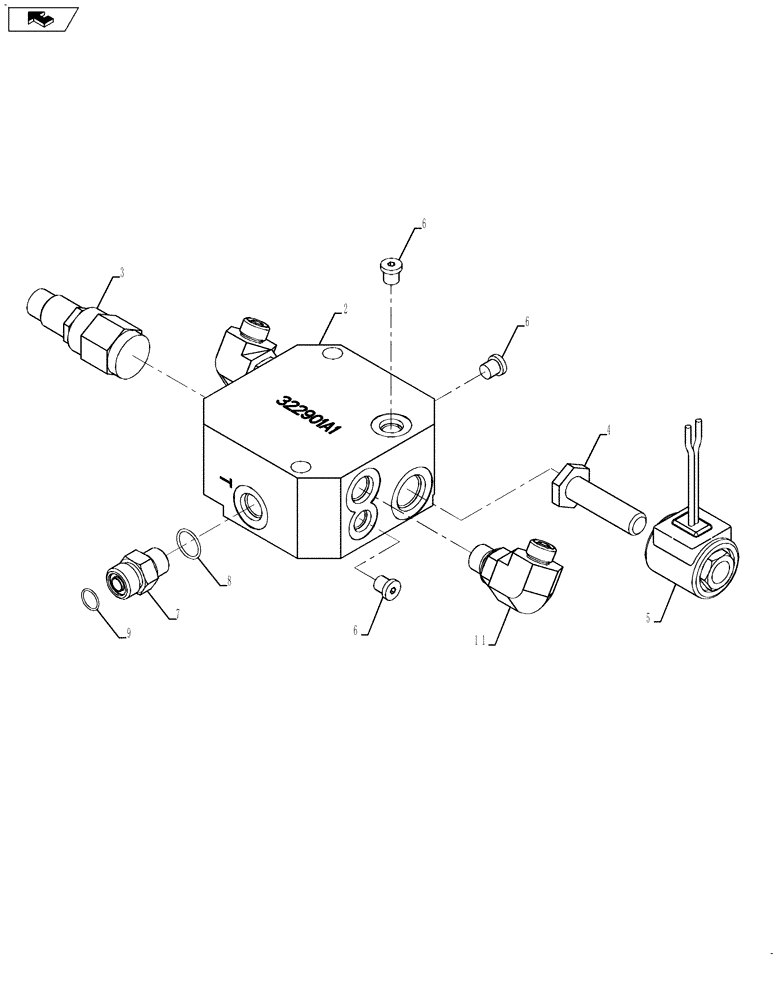

Запчасти Case IH 635 (29.218.06) - TRANSMISSION RELIEF VALVE (29) - HYDROSTATIC DRIVE

1

NSS

NOT SOLD SEPARAT

Transmission Release Valve Assembly

1шт.

2

322901A1

VALVE

Transmission Release Valve

1шт.

3

408731A1

VALVE, PRESSURE RELI

EF

1шт.

4

408733A1

SOLENOID

Valve

1шт.

5

237130A1

COIL

Solenoid

1шт.

6

278548

PLUG,Hex, 7/16"-20 ORB

4шт.

7

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Inc. 8-10

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

Not Shown

1шт.

11

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Inc. 12-13

2шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not Shown

1шт.

13

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Not Shown

1шт.
