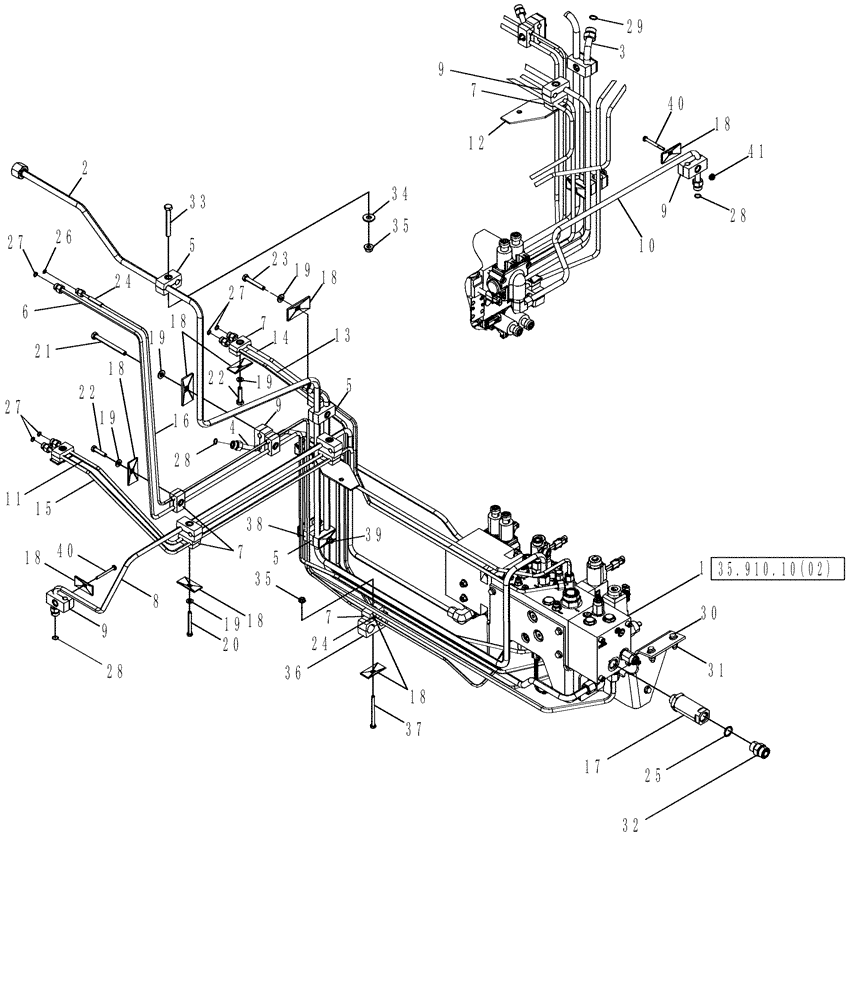

Запчасти Case IH 625 (35.910.09[02]) - HYDRAULIC VALVE - ELECTRONIC HEIGHT CONTROL, PACKAGER TILT, STANDARD COTTON CONTROL SYSTEM, MODEL YEAR 2009 AND AFTER (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY, Electronic Height Control

1шт.

2

87395071

HYD TUBE,.625" OD

Steering Return

1шт.

3

87395072

HYD TUBE,15.88 mm OD x 980 mm L

Tilt Raise

1шт.

4

87395073

HYD TUBE,12.70 mm OD x 1000 mm L

Tilt Lower

1шт.

5

1546026C1

CLAMP

3шт.

6

87312610

TUBE,0.375" OD

Steering Pressure

1шт.

7

1546024C1

CLAMP

7шт.

8

87538593

HYD TUBE,0.5" OD

Left Hand Drum Lift

1шт.

9

1546025C1

CLAMP

5шт.

10

87476418

HYD TUBE,0.5" OD

Right Hand Drum Lift

1шт.

11

87312783

TUBE,0.375" OD

Drum Service Harvest Left Hand

1шт.

12

87448913

SUPPORT ASSY.

1шт.

13

87310985

TUBE,0.375" OD

Right Hand Drum Service

1шт.

14

87313677

TUBE,0.375" OD

Drum Service Harvest Right Hand

1шт.

15

87311931

TUBE,0.375" OD

Left Hand Drum Service

1шт.

16

87314113

TUBE,0.25" OD

Sense To Steering

1шт.

17

93306C2

FILTER

Inline

1шт.

18

1347127C1

PLATE

Hose Clamp

12шт.

19

495-11034

WASHER,5/16", SAE

7шт.

20

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

21

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

1шт.

22

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

3шт.

23

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

24

163489C1

STRIP

4шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

29

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

30

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

5шт.

31

231-5146

FLANGE NUT,3/8"-16

5шт.

32

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1шт.

33

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

34

495-21038

WASHER,5/16"

1шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

36

1546028C1

CLAMP,25.4mm ID x 82mm L

1шт.

37

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

1шт.

38

87000141

CLAMP

1шт.

39

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

40

87342612

BOLT

2шт.

41

523282

SERRATED NUT,Flg, USR, 1/4"-20

1шт.
